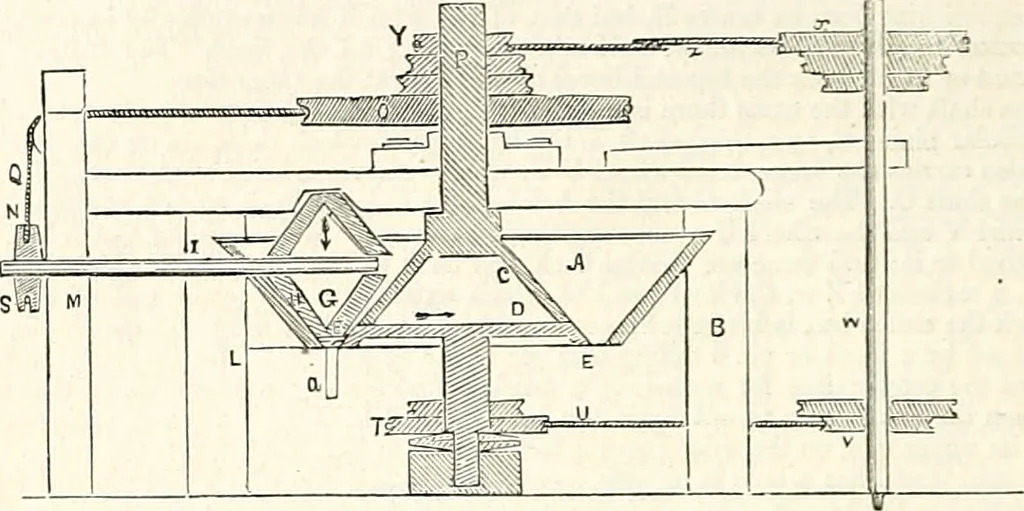

he jiartition F, and between itand the beater. The object of the upper conic frustum is to prevent the blanks from being: carriedaround towards the beater in too great a body; it also facilitates the downward movements of thtclanks towards the space E. The triangular plates or arms of the beater,… … The next part of the apparatus is tliat by winch the blanks are regularly delivered or fed fiom thecircular space E. It consists of a .horizontal slide plate 6, Fig. 324-3, (which represents a view of theunder sides of the hopper and lower conic frustum D.) affixed to the lower edge of the hopper…
