Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 262

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 262

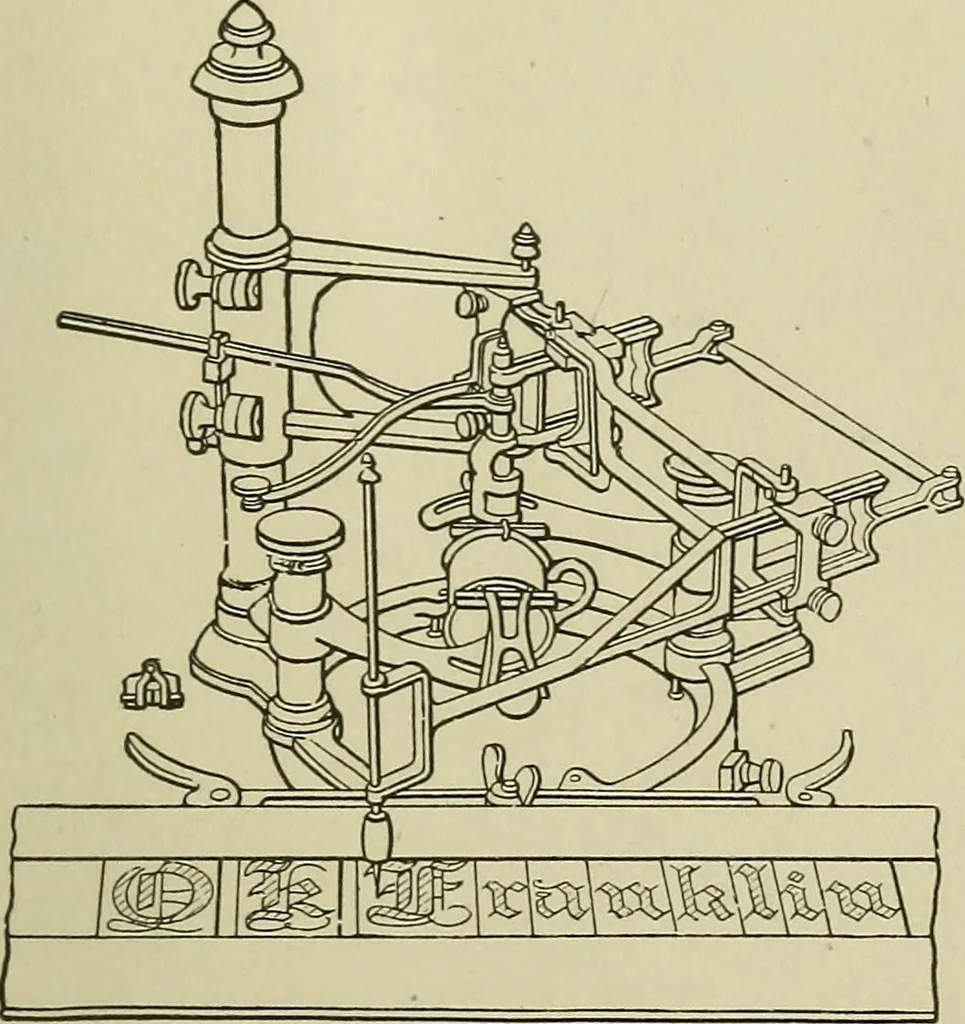

MOTION AND CONTROLLING DEVICES, ETC. 257 … 680. PANTO GRAPHIC EN-GRAVING MACHINE. A cup or any article to be engravedis held in clamps in the centralpart of the machine and underthe cutting tool. The stile ortracer is at the long arm of thepantograph and follows the pat-tern figures or letters, while theengraving cutter is pressed uponthe…
