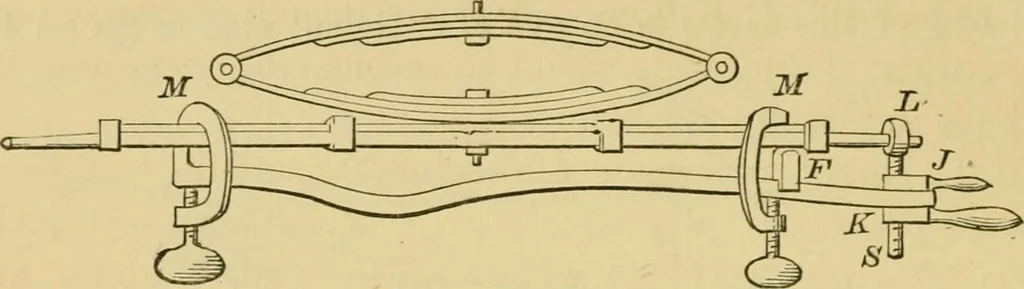

Fig. 23. the end of this the fulcrum is placed; then by turning thescrew the axle may be bent or set to any required pitch. 80 COACH-BUILDING. The figure shows the two ways of doing this, one with thebar or lever on top and the other with the lever below.Figs. 22 and 23 show two improved forms of… … Fig. 24. of a bar hooked on to the axletree in two places. The baris fastened by the clamp m, and fulcrum block f. The eye-bolt, l, is hooked over the end of the spindle or arm, and theadjustment of the latter is accomplished by the screw, s, andthe nuts j, k. Weight of Round Iron per Foot.…
