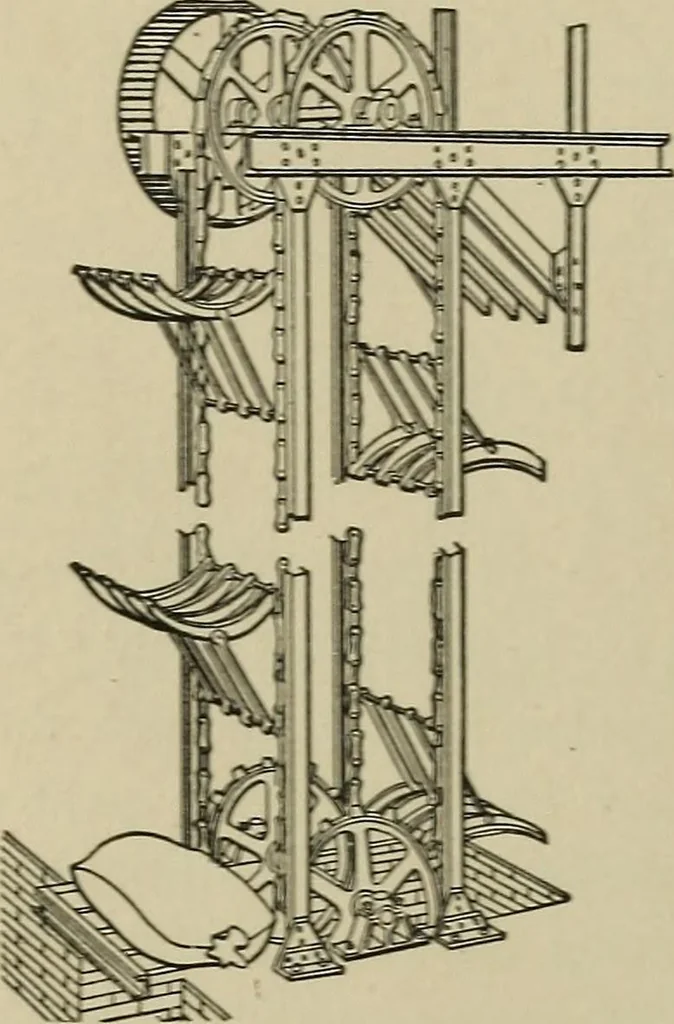

9. TRANSMISSION of powerby, wire rope and anchored levers.The braced tee pieces A B, withtheir arms connected with a distantrocker by the wire W W, pivotedto the windmill frame and to thecrank rod at A, make a very effec-tive method of operating a pumpat a distance. A strong fencewire is sufficient… … 10. BAG ELEVATOR. The bagsare delivered from a car door on to agrating through which the forked handsof the elevator picks them up and dis-charges upon an inclined chute gratingto slide to a horizontal carrier from whichthey are deposited at any desired place.The forked hands are braced loosely…
