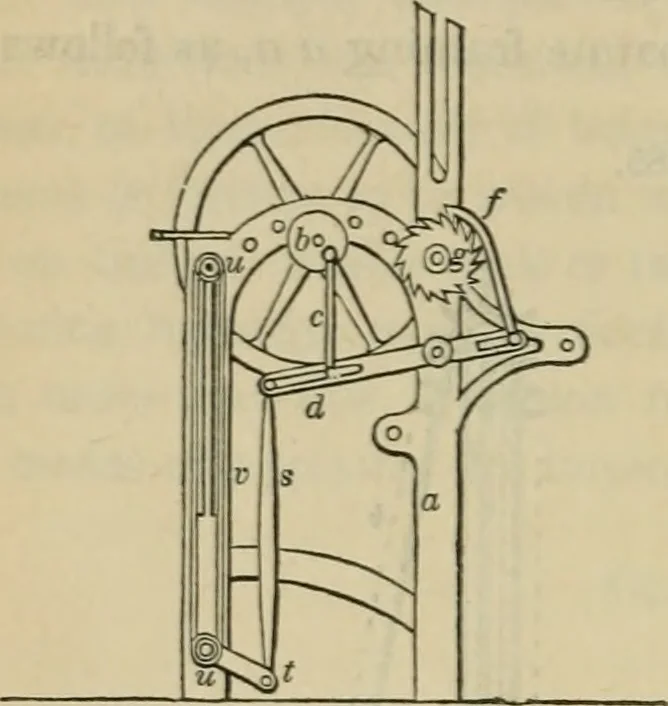

etached from the loom in Fig. 398 THE ART OF WEAVING. 186, and is designed for the purpose of actuating the catch-wheel g^one tooth at every revolution of the crank shaft 6 ; the catch-wheel g^ is mounted upon the shaft A, (see Fig. 187) and upon thisshaft, the notched guide-wheels i i, are also… … Fig. 187. p h The tension pulley 97i, placed about midway in the frame, is forthe purpose of assisting the drag or weight of the tappet-rack. It will now be seen, that as the travelling tappet-rack proceeds,the teeth, studs, or tappets * *, of which it is partly composed, (andwhich it will be…
