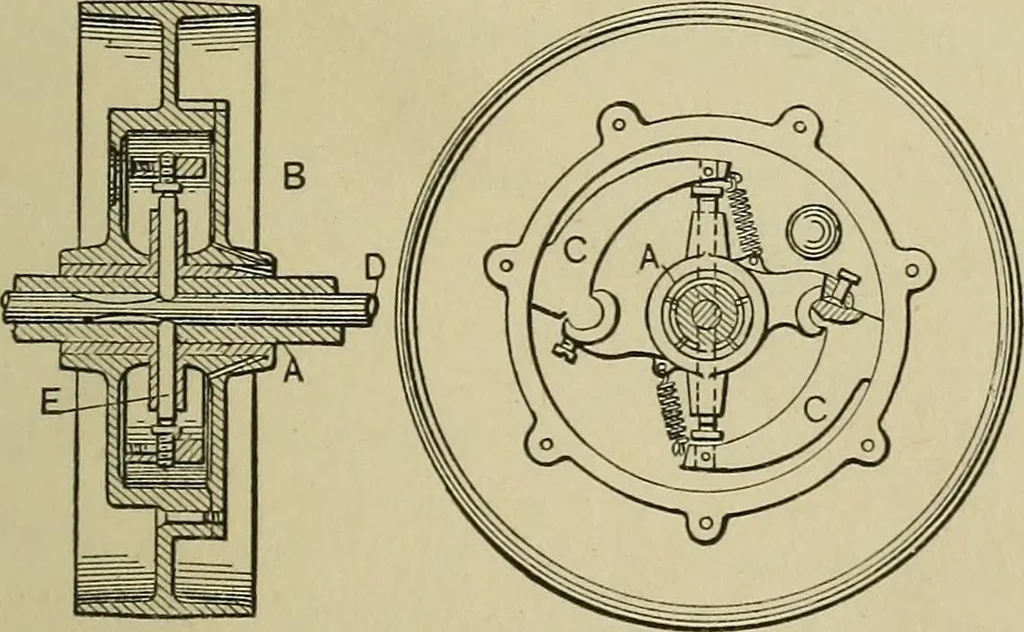

connected to the shipper. As the rod ismoved in the shaft by the shipper, a double wedge—formed on therod—forces out the two pins E, and these pins press the grippinglevers tight against the friction surface. When the rod is moved in theopposite direction the springs force the pins toward the… … 26 TRANSMISSION OF POWER.
