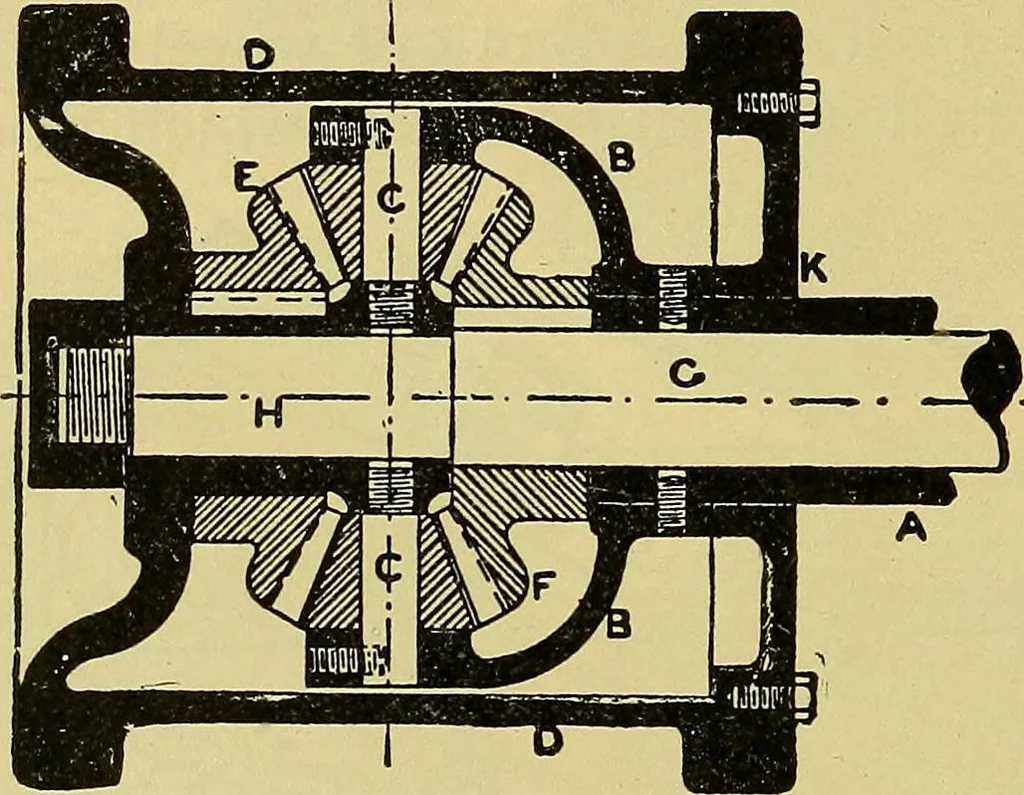

r Through Axle Shaft.—Another typical methodfor securing the strength and solidity of a through axle shaft is toattach both wheels to hollow axles of the same diameter, each ofwhich carries on its opposite, or inner, end the gear wheel of thedifferential train. Another tube, called the liner tube,… … Fig. 29.—The Hub-Enclosed Differential of the Riker Carriages. A is the rotating sleevecarrying the drive spur. It is bolted to the yoke carrier, B, and the flange piece, K,as shown. C and C are the studs of the bevel pinions attached to the yoke carrier,B. F is the bevel gear wheel keyed to the…
