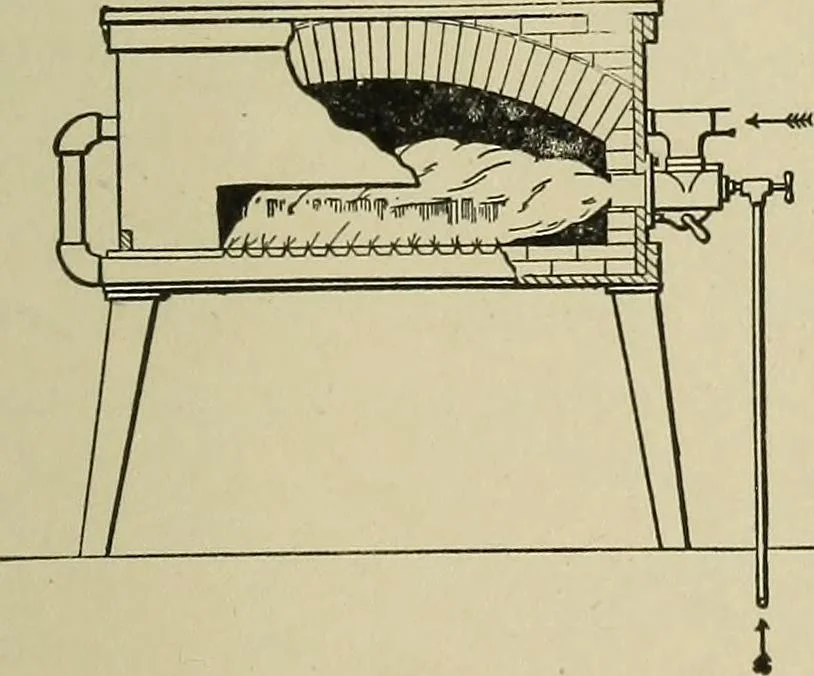

782. DOWN-DRAUGHT GAS-MELTINGFURNACE. The burner B, of combined gas and air,enters the flame at the top of the crucible and dis-charges to the chimney below the bottom of the cruci-ble at H. E is the cover lifted by the lever C, andchains to swing off the furnace. The hearth is aperforated fire… … 783. OIL OR GAS FIREDAir FORGE. Oil or gas enters the ato-mizer by the small pipe and is mixed atthe nozzle by a strong blast of air. Ad-ditional air jets to complete the com-bustion enter beneath the bed of the— furnace.
