Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 344

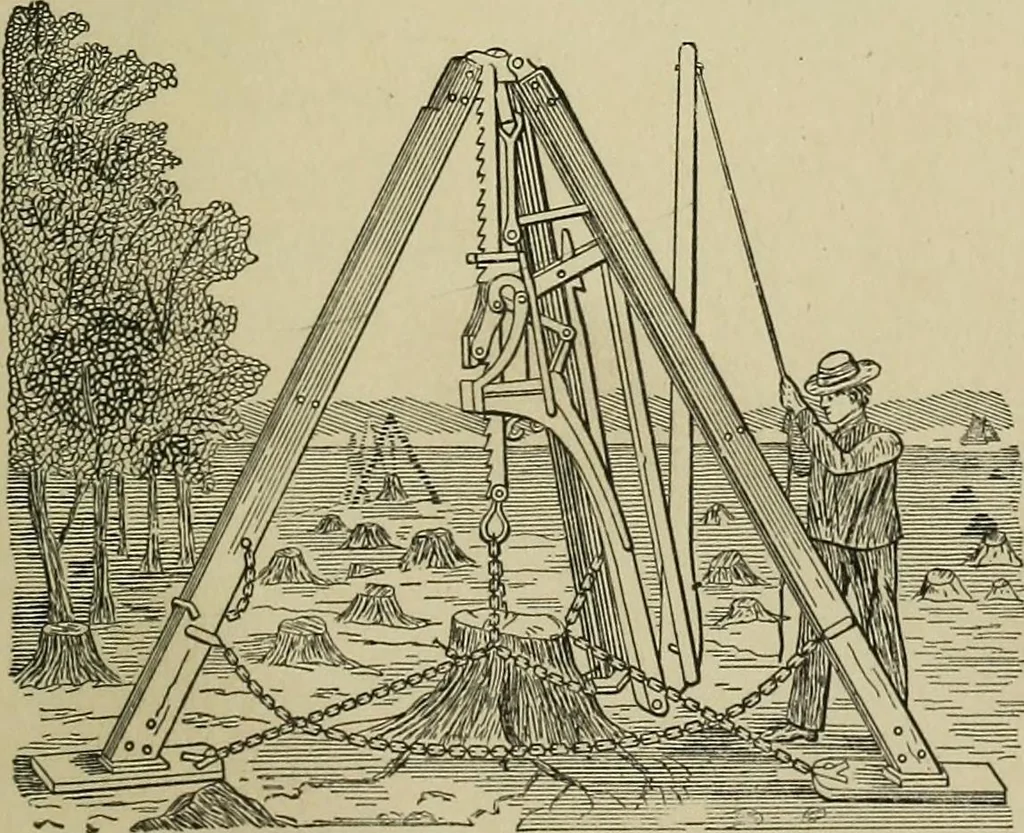

secured a chain carrying a bar or plate pro-vided with a bearing in whichslides a notched bar. Mesh-ing with the notches of thisbar are the teeth of a pawl,which is so connected bylevers with the operatinghandle that the downwardmovement of the latter willraise the pawl and notchedbar and the chain… … 540 MISCELLANEOUS DEVICES. succession of up-and-down movements of the handle, the notched barmay be elevated its entire length, or until the stump is pulled com-pletely out. 871. MOTOR ROLLER-DISK PLOW. The gang of roller disks are separately at-tached to arms pivoted toa frame, which is attachedto…
Mechanical movements
