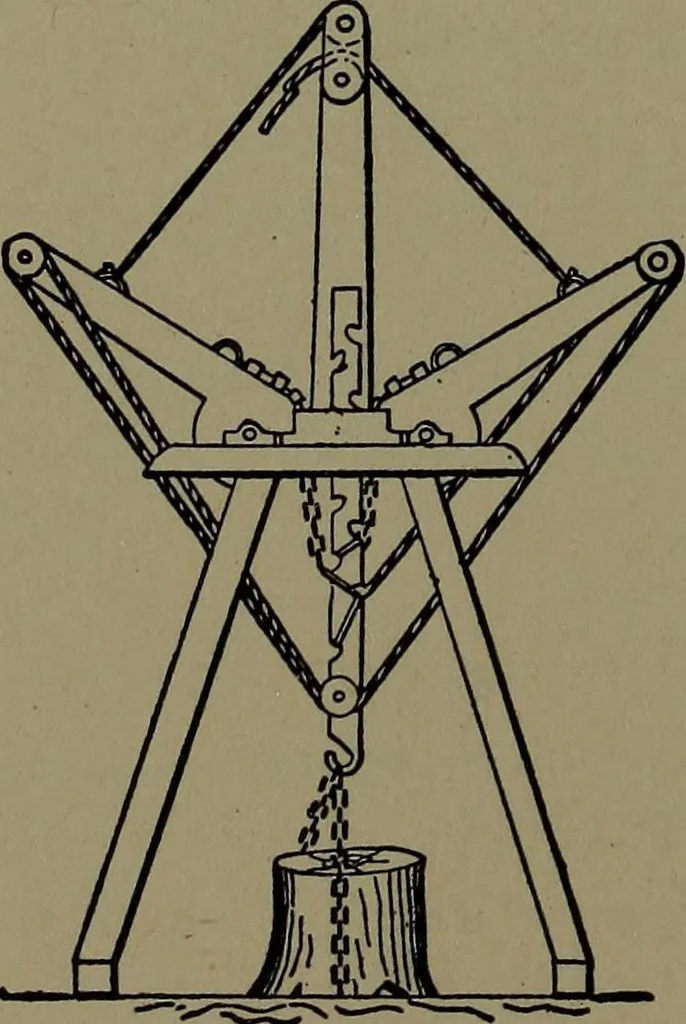

1450. HYDRAULIC SAND EJECTOR.—A thin annular jet of water, under high pressure,will eject sand and water from a sump and dis-charge at an elevation. The principle of the Eads ejector dischargings and from the caissonsof the St. Louis Bridge. … 1451. TOGGLE STUMP PULLER. —By pulling up the two toggle levers, thechain and links slip down a notch in thedraw bar when the double tackle drawsthe levers down. Also for drawing pilesand sheet piling. CONSTRUCTION AND DEVICES. 351
