Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 352

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 352

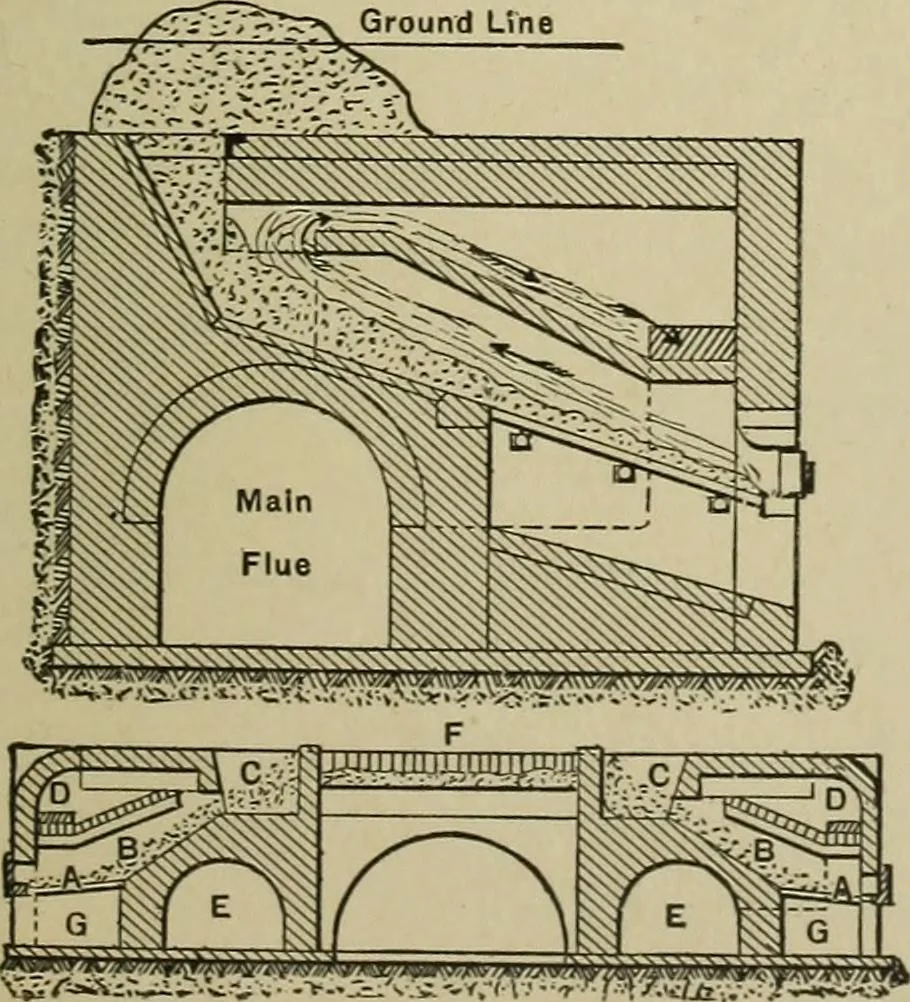

and trans-verse sections of a double line of furnaces. The grates where the fire is made are shown at A. At B therefuse to be destroyed is shown in aninclined flue where it is being dried,and as it is consumed on the grate,descends on the slope of the flue,fresh matter being supplied from thepits… … 348 MISCELLANEOUS DEVICES. 893. LIFE-SAVING NET. For bottom of elevator shafts. Astrong rope net, F, held on two sides by the rods, G, which are in turn supported on each end by theffl 1,11. .11 .11) 11111| 1 \=r^ strut arms C. The lower ends of these arms fit the bearingsin the pillow blocks, B,…
