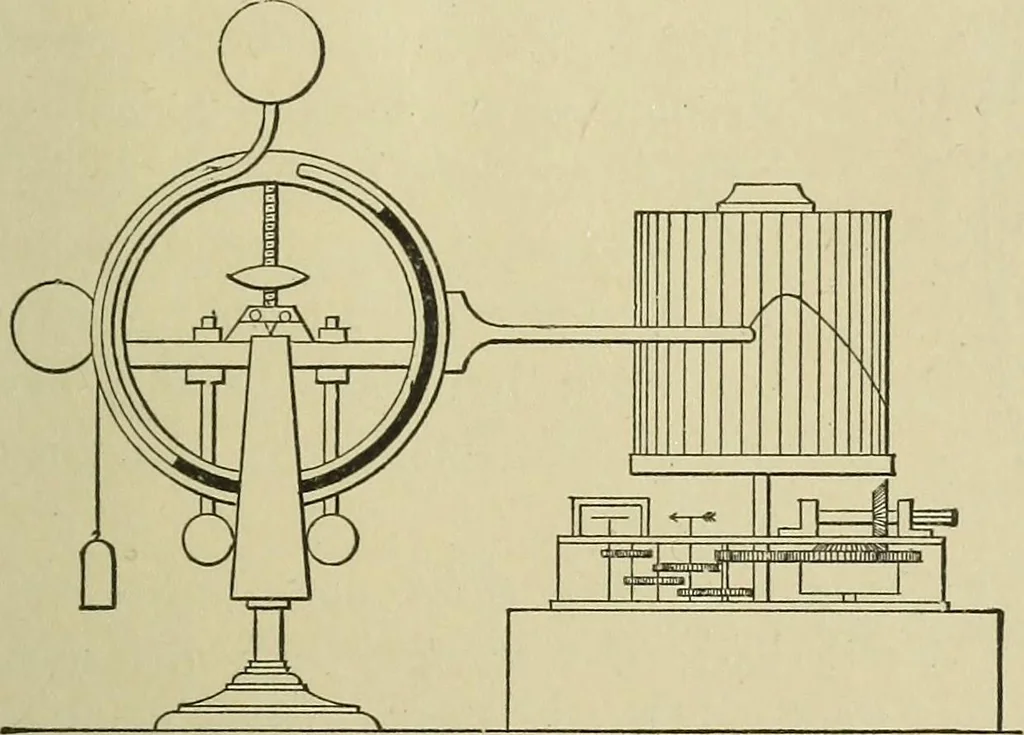

MEASUREMENT OF POWER, SPRINGS. 39 45. REGISTERING AIR THERMOMETER. A glass tubebent into a circle with an air bulb at the top nicely balanced by coun-terweights on a knifeedge. Part of the tube, asshown by the heavy blackline, is filled with mercury.The expansion and con-traction of the air in… … 46. METALLIC THERMOMETER. A series of rods or stripsof zinc and iron alternating, with their alternate ends fastened together, so that the first rod shall be zincand the last iron, which shouldextend to a curved lever thatoperates a sector and small pin-ion to which the index handis attached. The…
