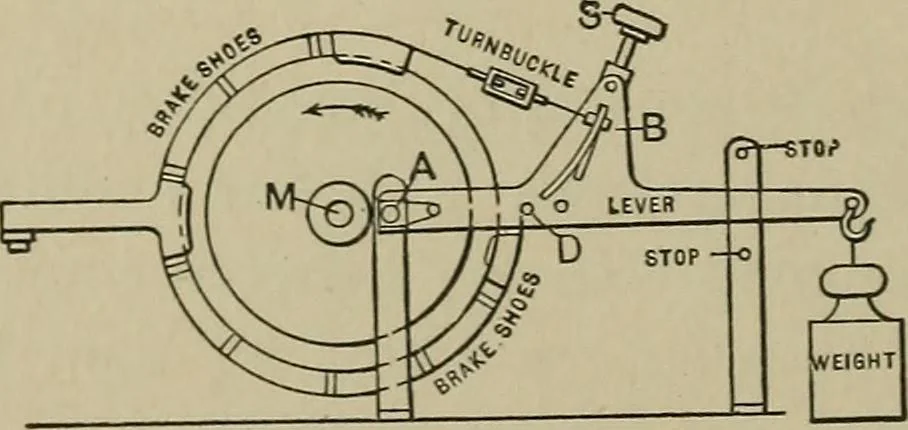

55. PRONY BRAKE. 1 The lever arm is pivoted at A. The bandcarrying the brake blocks is connected to the lever at D and B. The brake blocks are hollow and pro-vided with internal water circulationfor cooling. The faces of the brakeshoes are smeared with tallow, andno water is allowed on the…
