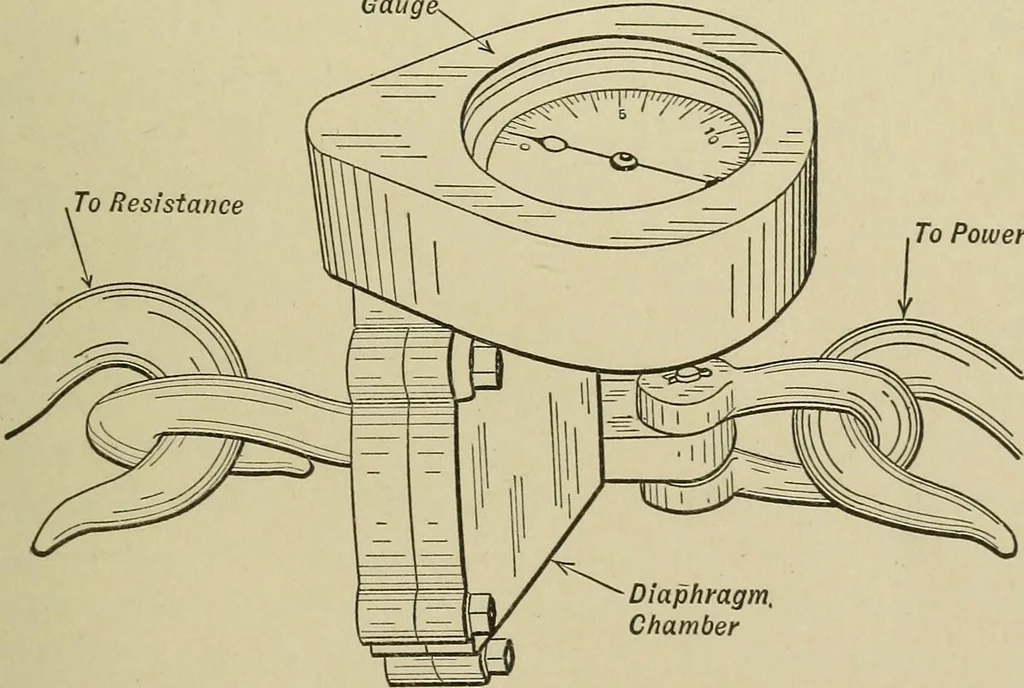

Max. load. Deflection. Flexibility. p_S-D316 R 2RSL F= DG 32 P R2 L IT F 2SLR~ GD x ~ 7v G D4 G, modulus. 72A. TRACTION DYNAMOMETER. The drawbar pull of anymotor vehicle is determined by means of some form of traction dyna- Gauge To Power … mometer. This instrument is placed between the source of power ordrawbar of the vehicle and some immovable body, such as a large tree.The vehicle is started and the maximum amount of pull is indicatedin pounds upon the gage just before the vehicle driving-wheels slip orthe engine stops. This…
