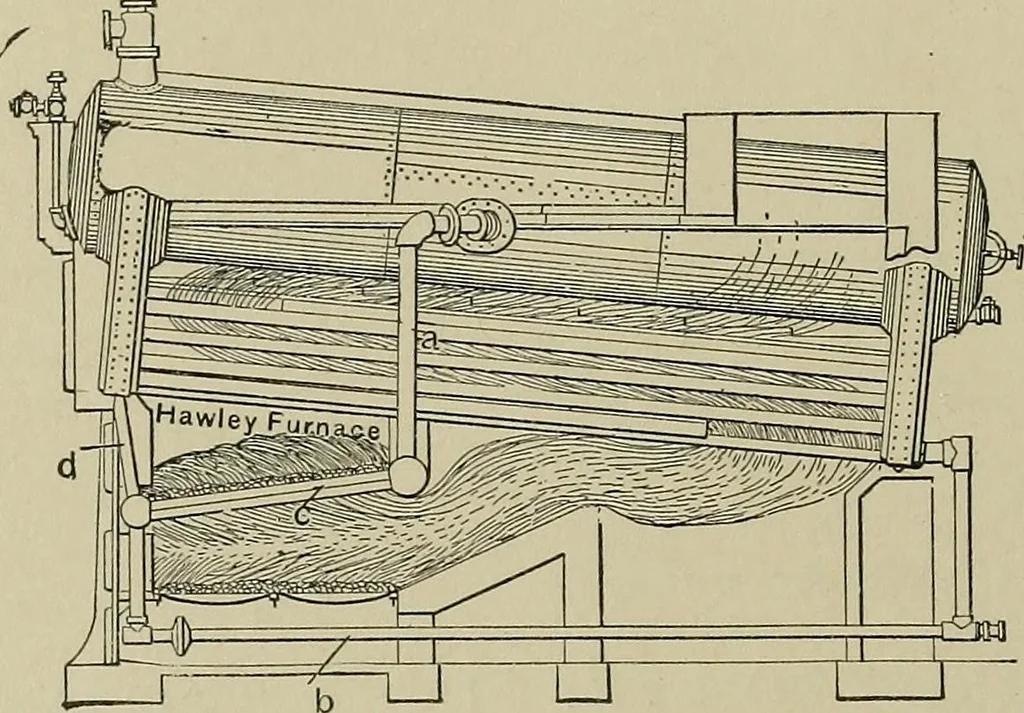

along theupper and lower tubes di-rect the heated gases in contact withtube surface. the entire r%&?$$i 53 54 GENERATION OF POWER, STEAM. 76. DOWN DRAUGHTBOILER FURNACE. Hawley type under a Heinboiler, c, tubular grate, d,tube connection betweengrate header and front drum.b, tube connection… … 77. TRIPLEX BOILER. Fanning type with down draught grate.Shells are filled with tubes and with no stays. Top shell used for
