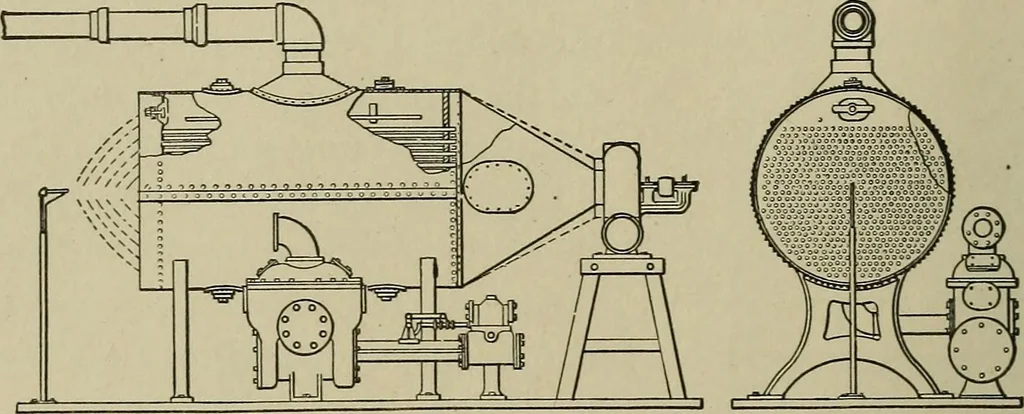

7o GENERATION OF POWER, STEAM. 136. NOVEL SURFACE CONDENSER. A cylinder filledwith small tubes as shown in the section, 137. A spray jet of water … thrown against the tubes at one end, and with a large volume of air, isdrawn through the tubes by a suction blower at the end of the conicalchamber. The water is vaporized and with the air takes up the heat ofthe exhaust steam and is discharged in a vapor by the blower. Thepump keeps up the vacuum…
