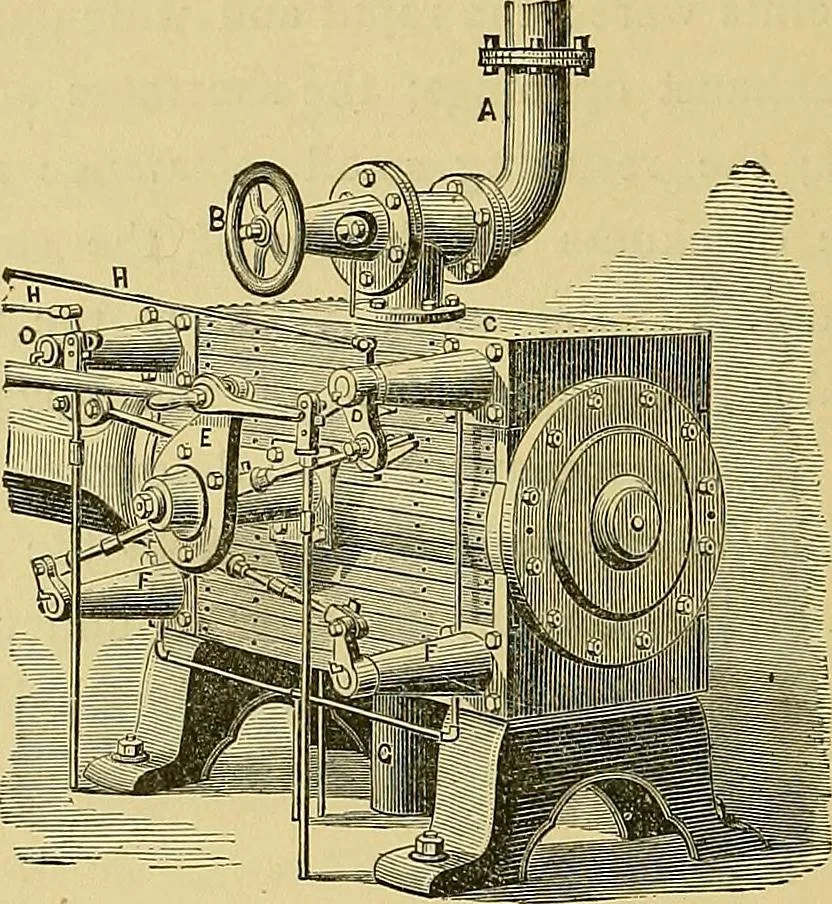

l. I. § 34. 25 STEAM ENGINES FOR cylinder. Links, E D, E D, E F, E F, take motion, fromproperly set pins on this wrist-plate, to the steam valverock-shafts, D, D, and to the exhaust valves, E, E, movingthem with a peculiar varying motion in such a manner as toopen and close the ports rapidly, and… … The Corliss Engine. with catches, or latches, which may be disengaged, as thevalve opens, at any desired point within about half stroke;and the time of this disengagement is determined by therotation of a cam seen on the valve stem above D, whichcam is rotated by the governor through the rod II,…
