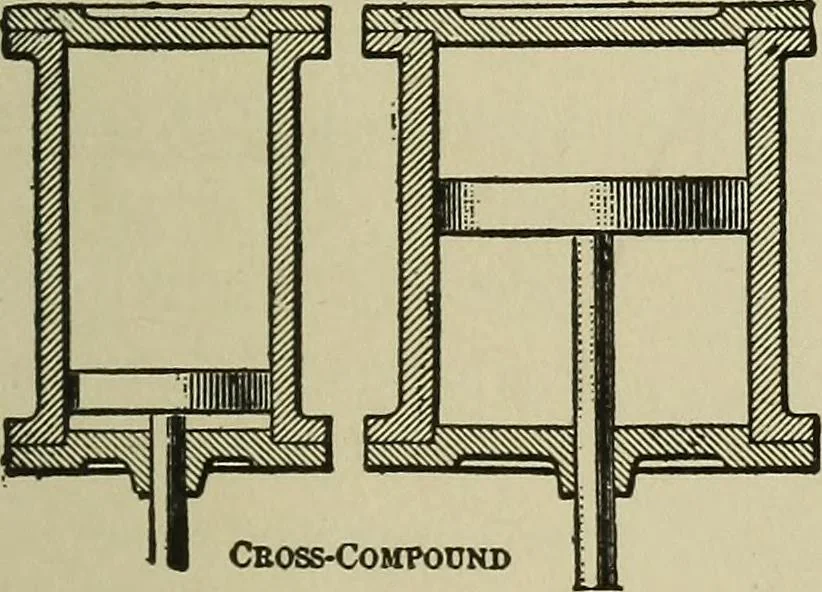

139. TYPES OF COMPOUND ENGINES. Single cylinder or trunk engine in which the highand low pressure areas are adjusted by the size ofthe piston rod or trunk, which is inclosed by a stuffingbox. The connecting rod is jointed within the trunk. … 140. TYPES OF COMPOUNDENGINES. Cross compound withcranks at 1200 on ends of shaft. Flywheel in center. In this type there isno dead center. 141. Low-pressure cylinder, showingrelative positions of piston.
