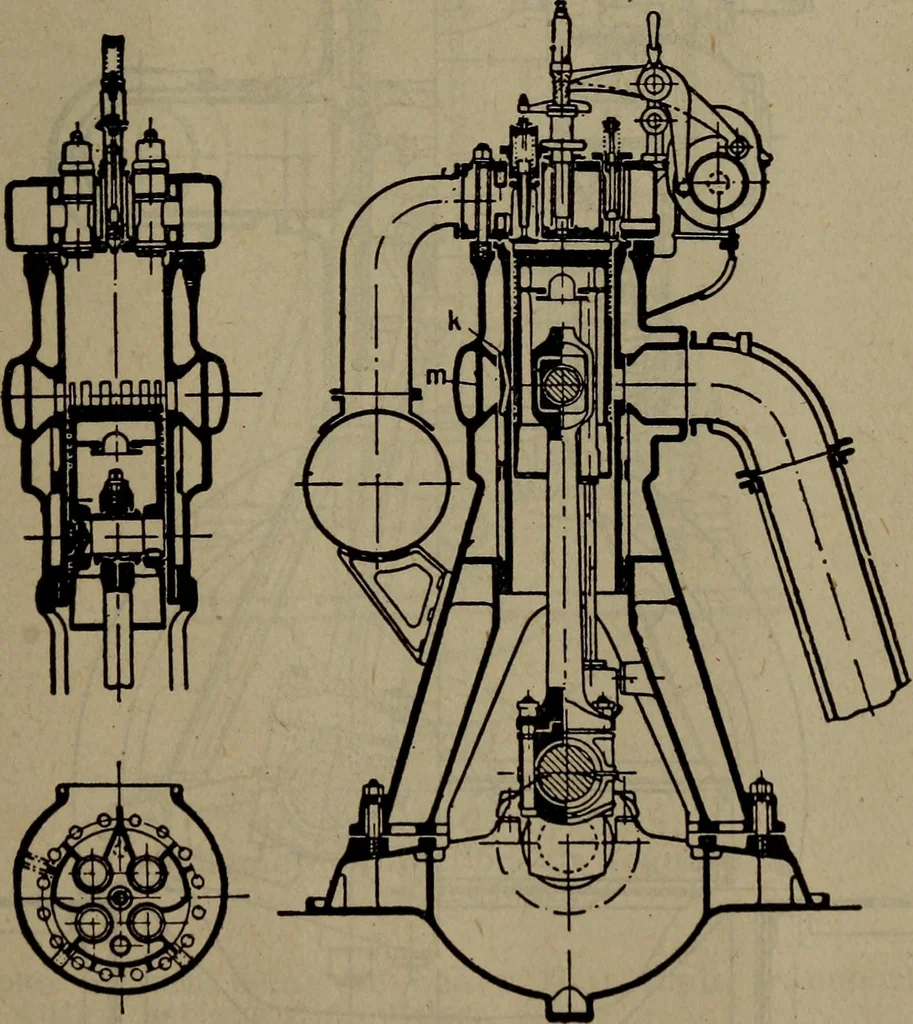

r after the period of compression,about 600 pounds pressure per square inch is required for theinjection. This pressure is supplied by an independent air com-pressor. The air necessary to support combustion is introducedthrough an air inlet valve. Figure 1 represents cross-sections of the working… … FIG. 1 Sectional view of Diesel two-stroke cycle engine. 810a 810& Steam Engineering is, of course, a typical feature of two-stroke motors. .This ar-rangement is an undoubted advantage over four-stroke motors,which discharge their exhaust gases through valves. The admis-sion of scavenging and…
