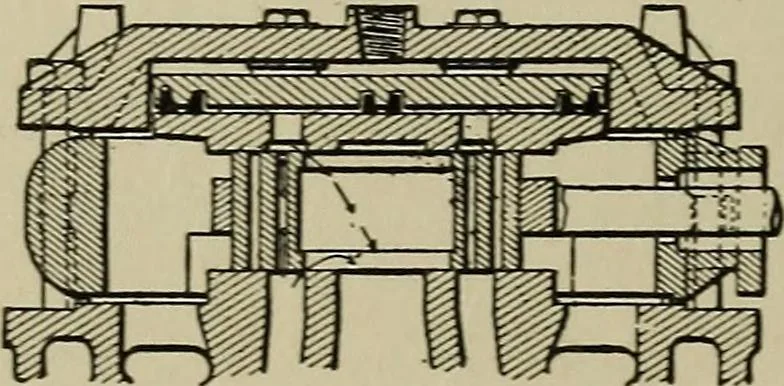

VALVE IN WI0E.OPEW POSITION … 166. BALANCED VALVE for steam engine. Wilson type. Pressuresare equalized by steam pressure underthe riding plate. Valve has double ad-mission and double exhaust ports. Thethree sections show the positions of thevalve when opening, wide open, andexhaust opening position. 167. Wride open…
