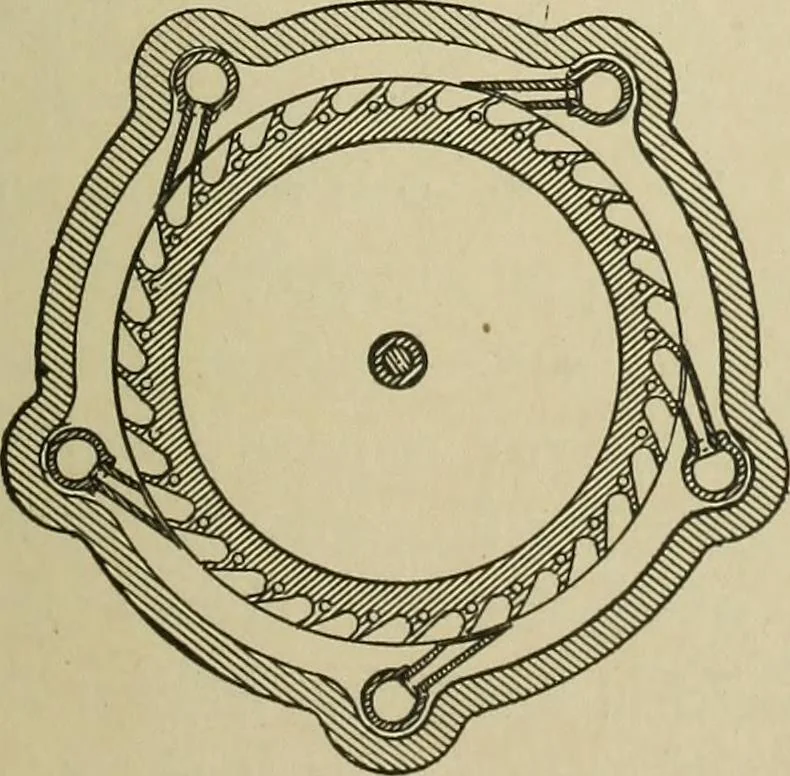

MOVING BLADES ■STATIONARY BLADES MOVING BLADES-STATIONARYBLADESMOVING BLADES 111! 1 i 182. STEAM TURBINE. De Laval type. Vertical sectionshowing form of buckets and nozzles. Steam impinges against theouter edge of the buckets and exhausts at the sides.
