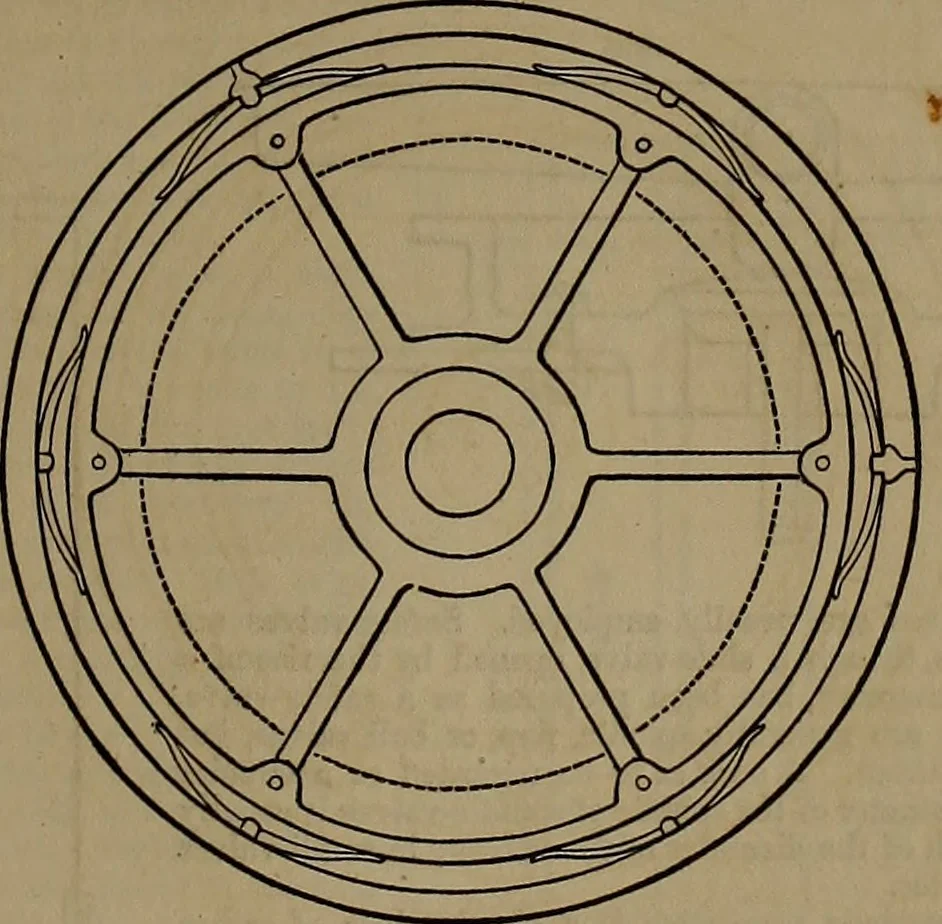

Scale.—i inch=l foot. Fig. 1557 represents the piston often used for cylindrical slide-valves. By raising or lowering thescrew, it will be evident that the rings are compressed or expanded. A flat place is of course cast inthe body of the piston to leave room for the bridle. 1554.
