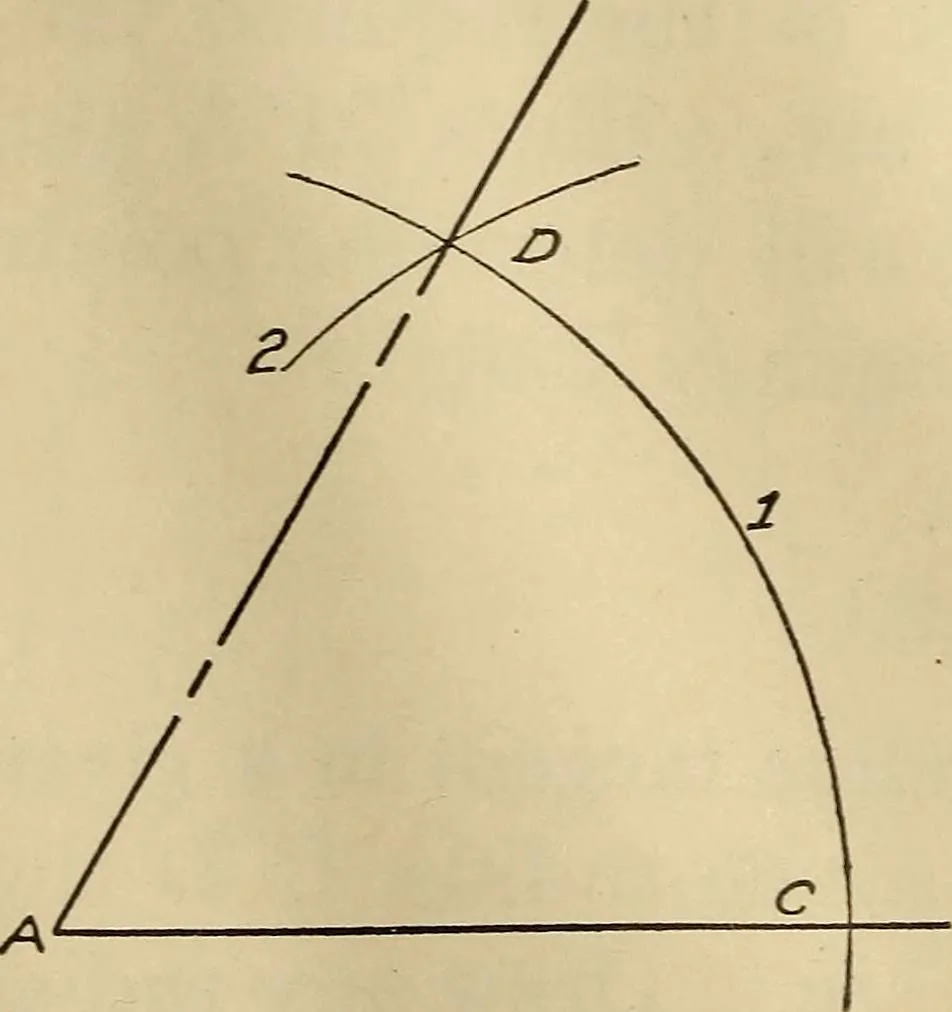

lineGH. Measure off HKequal to A B. With G as acenter and radius G K, drawarc 1. Draw line L M par-allel to and a distance equalto A B from C D. (Prob-lems 7 and 21.) Where LMcuts arc 1, draw N T per-pendicular to C D. (Prob-lem 6.) With N as a centerand radius N T^ draw the re-quired tangent arc.… … To construct an angle of 6odegrees—Let A B be oneof the sides. With A as acenter and any radius, drawarc 1, cutting A B at C.With C as a center andthe same radius, draw arc2 cutting arc 1 at D. Line^ A D will make an angle of60 degrees with A B. GEOMETRICAL PROBLEMS 193
