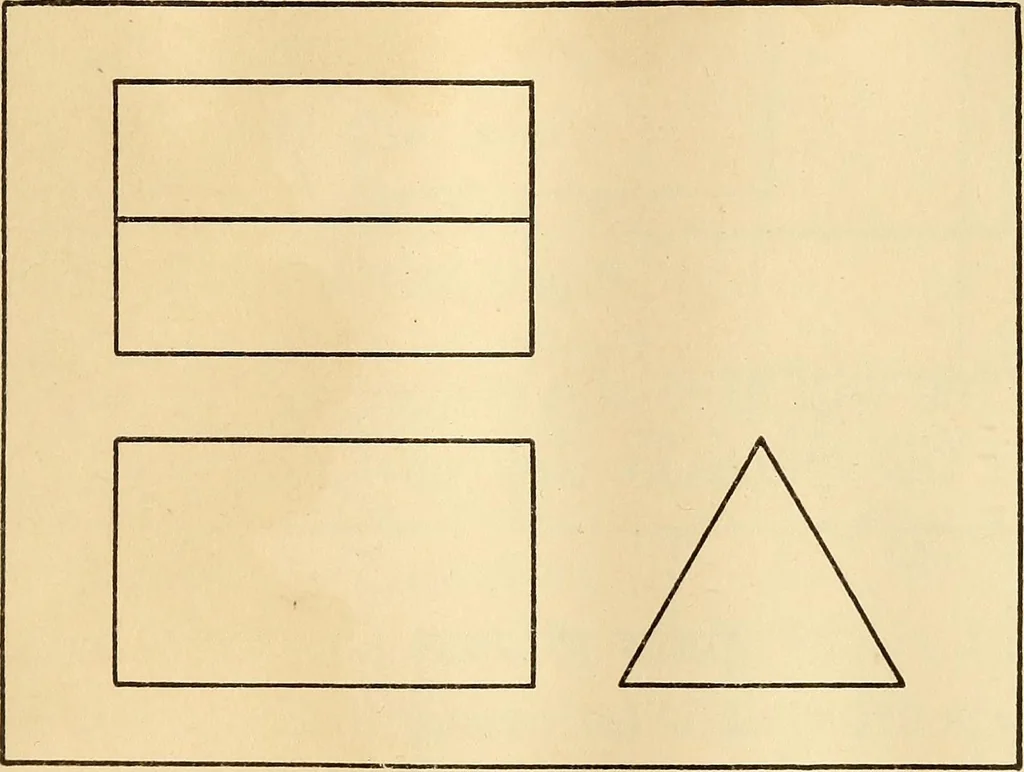

tween the witness lines, the arrow-heads,or the dimension, or both, may be placed outside.These three methods are shown in Fig. 26. WORKING DRAWINGS 41 Do not use the marks, when all dimensions arein inches. LOCATING THE DRAWING IN THE RECTANGLE Unless a drawing is located in the center of… … right and left. The drawing shown in Fig. 27, surelyis more pleasing to the eye and makes a better im-pression than the one shown in Fig. 28. This isdue entirely to the proper placing of the drawingwithin the rectangle bounding it. The exact location of the drawing on the sheetshould be determined…
