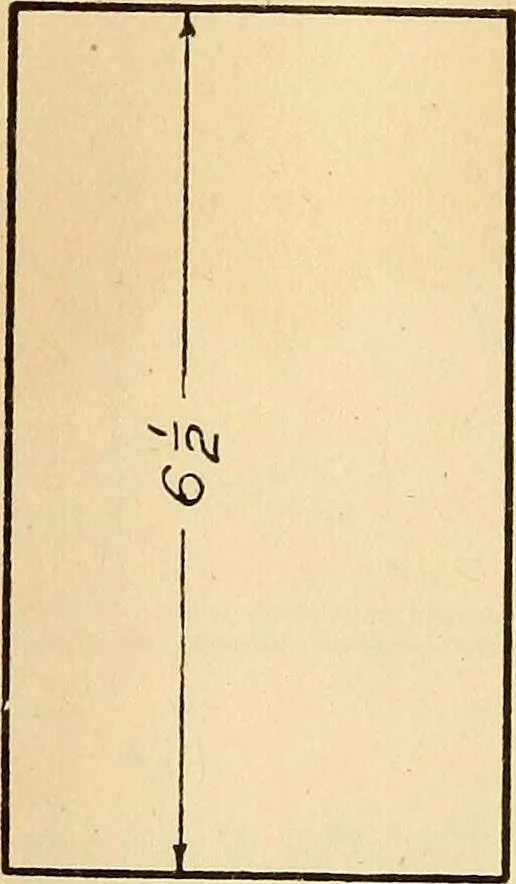

nd bot-tom and the spaces at the right and left. Thus, in J A1 1 \ •^ i — B — ■T — -/4- — 2 — ^5 — r ^ \ Fig. 29 Fig. 29, the spaces A and A maj^ be obtained byadding the height of the front view, i\, the height WORKING DRAWINGS 43 of the top view, 2^ and the space to be allowedbetween the front… … nj,30 spaces B and B may be ob-tained in the same manner byadding the width of the frontview, oF, the width of theside view, 2, and the spacebetween views, 1^, making atotal of 8i^ Subtracting thistotal from the width of therectangle, 12, and dividing by j*^two, we have, 12-8i = 3i,and 3i-2 = lf.…
