Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 243

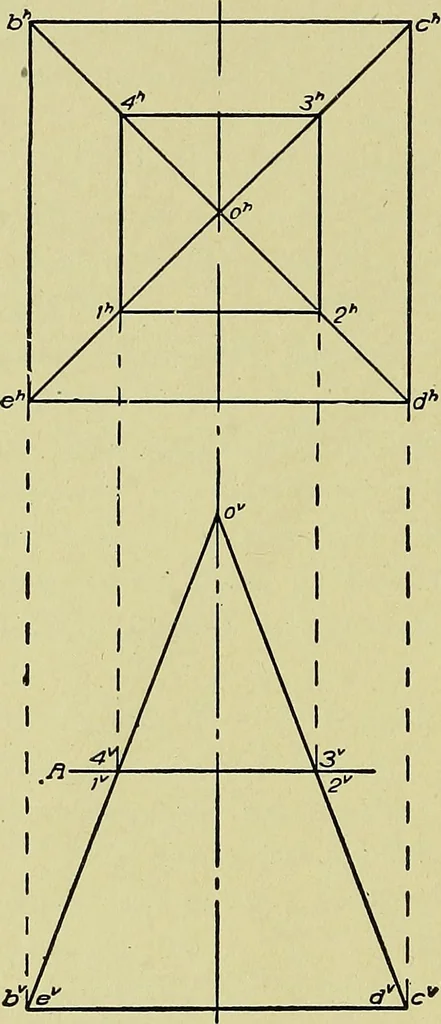

n similarly projected to S, and joined by straightlines to the several angles of the base, the projection of the solidis completed. 163 98 MECHANICAL DRAWING INTERSECTIONS If one surface meets another at some angle, an intersection isproduced. Either surface may be plane, or curved. If both…
