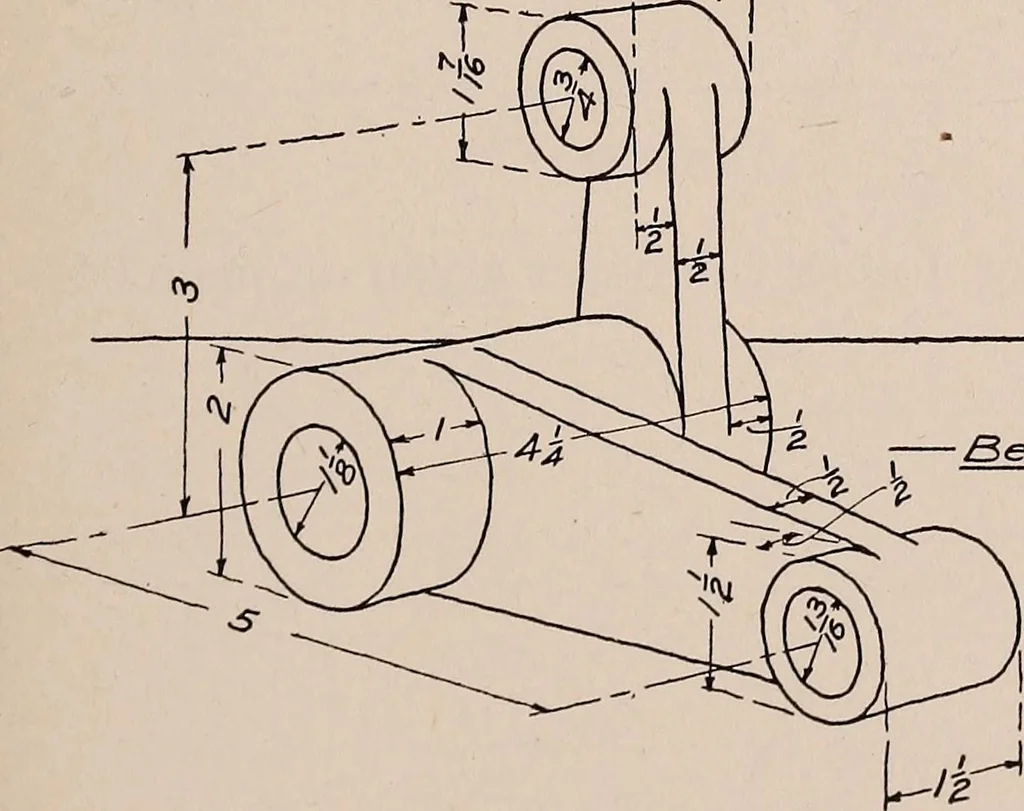

4--H h-/2-i … Be// Cr-crryA- Plate 9. Extra Plate PLATE 10 Copy the two views shown in one of the rectangleson pages 101 to 106, and work out the third view.The problem will occupy the entire sheet. Locate thecenter lines to bring the drawing in the center of thesheet. Print the name of the piece under the…
