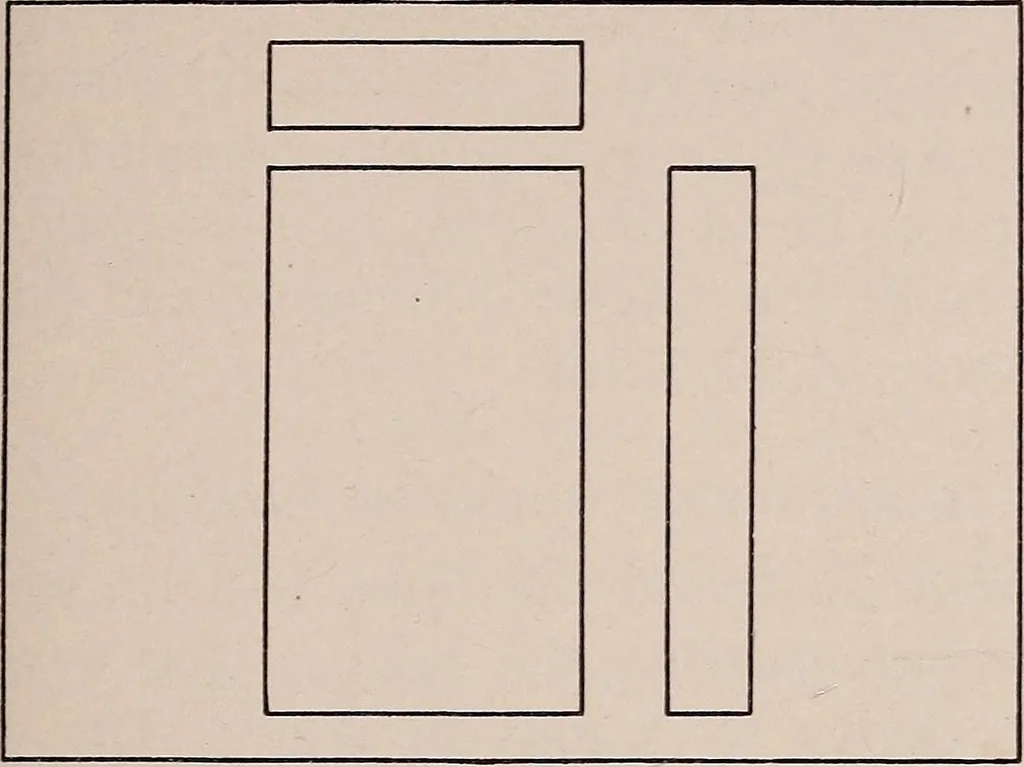

ccording to these conditions is shown in Fig. 31.One can readily see that there is too much spacebetween the top and front views, when we compareit with the spaces at the top and the bottom of thedrawing. If we reduce this space from V to ¥, wewill then have an additional i to be dividedequally and… … /-/> 32 though this is an improvement over the other con-dition, it still looks awkward with so much space
