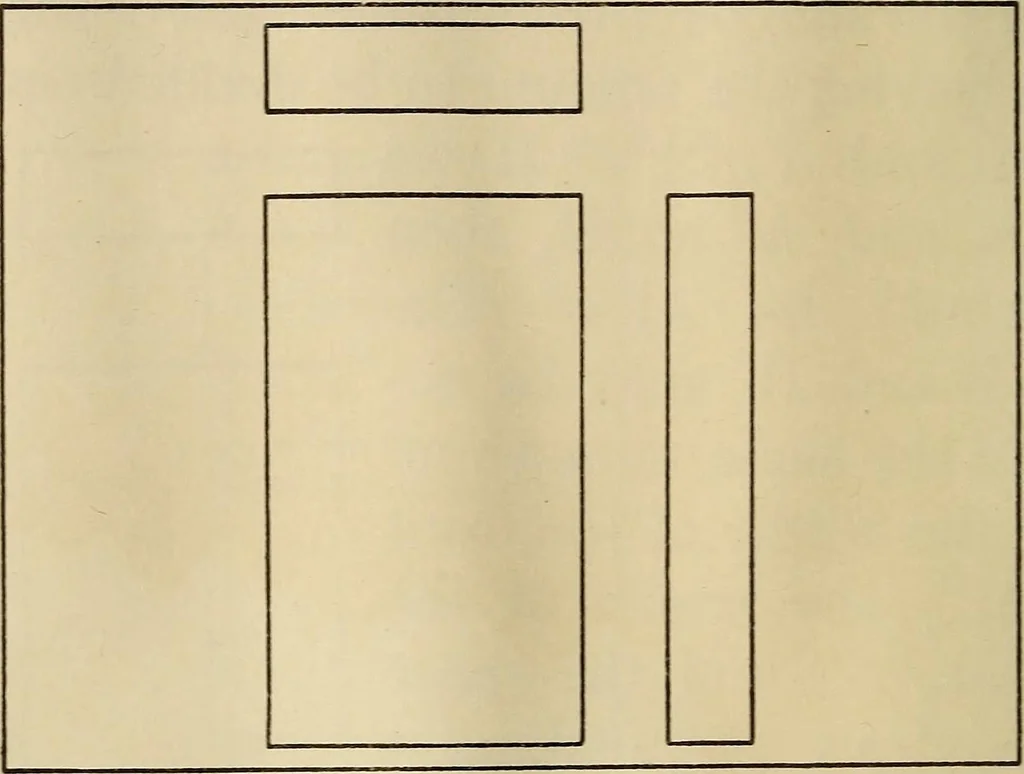

; in fact it is better undercertain conditions that they be unequal. In thefigure we have been discussing, there is more blankspace horizontally than vertically; therefore thereshould be more space between views horizontallythan vertically. Let us consider one other condition. The drawingshown in… … tracted from the horizontal dimension of the sheetwould give 6i^ to be divided into two equal parts,for the spaces at right and left. These spaces wouldthen be ?n each. Allowing V^ between the frontand top views, the total height of the drawing wouldbe 8i^ The difference between this height and…
