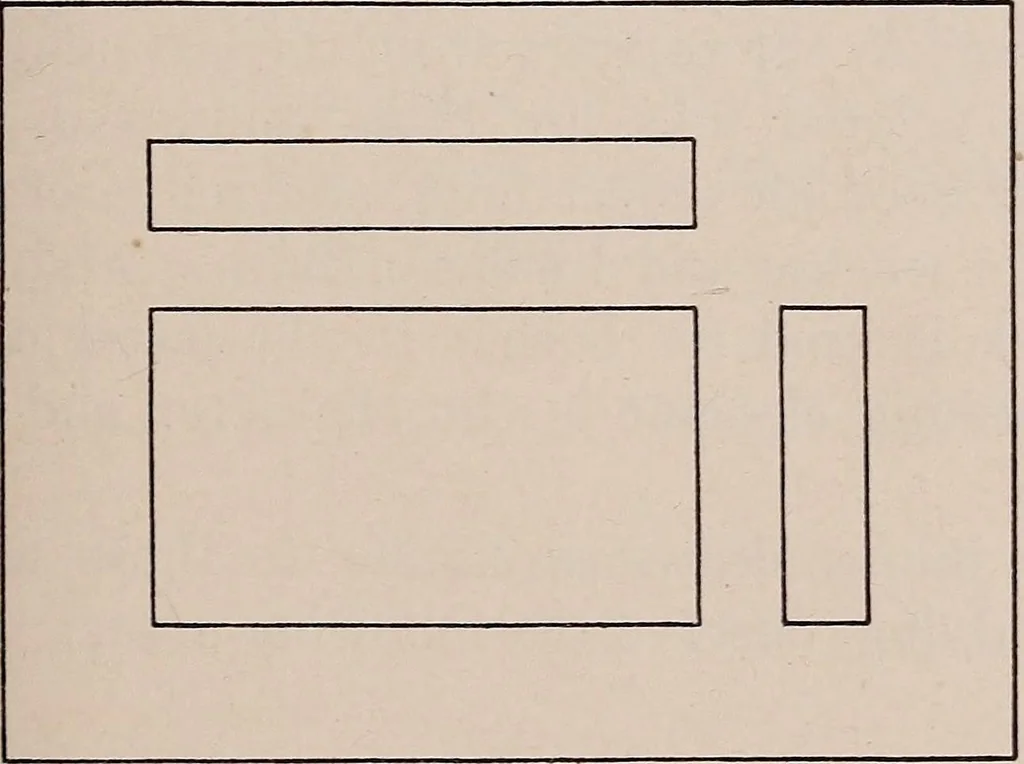

/-/> 32 though this is an improvement over the other con-dition, it still looks awkward with so much space … horizontally and so Httle vertically. The reasonfor this is that we have been attempting to place the 46 MECHANICAL DRAWING long dimension of the drawing in the short dimensionof the rectangle. By a rearrangement of views asshown in Fig. 33, thereby placing the long dimensionof the drawing parallel…
