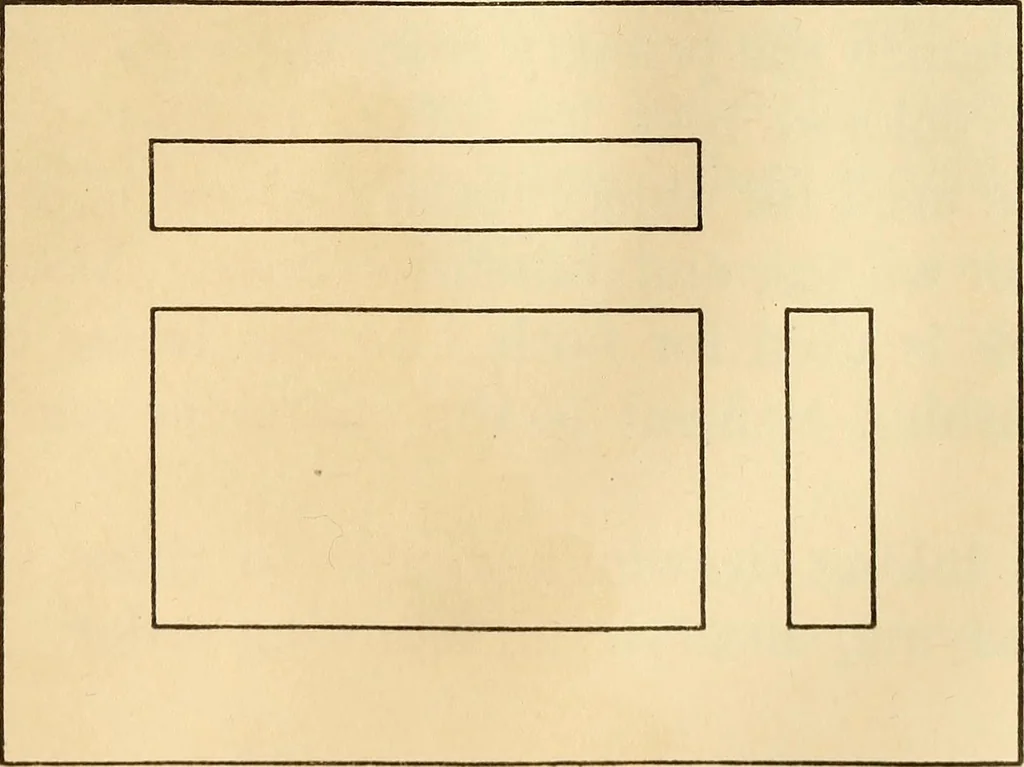

top and front views, when we compareit with the spaces at the top and the bottom of thedrawing. If we reduce this space from \ to i^, wewill then have an additional \ to be dividedequally and added to the spaces at the top and thebottom, making each of these \, instead of \ as WORKING DRAWINGS 45… … /vy. 33 horizontally and so little vertically. The reasonfor this is that we have been attempting to place the 46 MECHANICAL DRAWING long dimension of the drawing in the short dimensionof the rectangle. By a rearrangement of views asshown in Fig. 33, thereby placing the long dimensionof the drawing…
