Babbitt, Arthur B. (Arthur Bradford), b. 1873 · New York, H. Holt and company · leaf 75

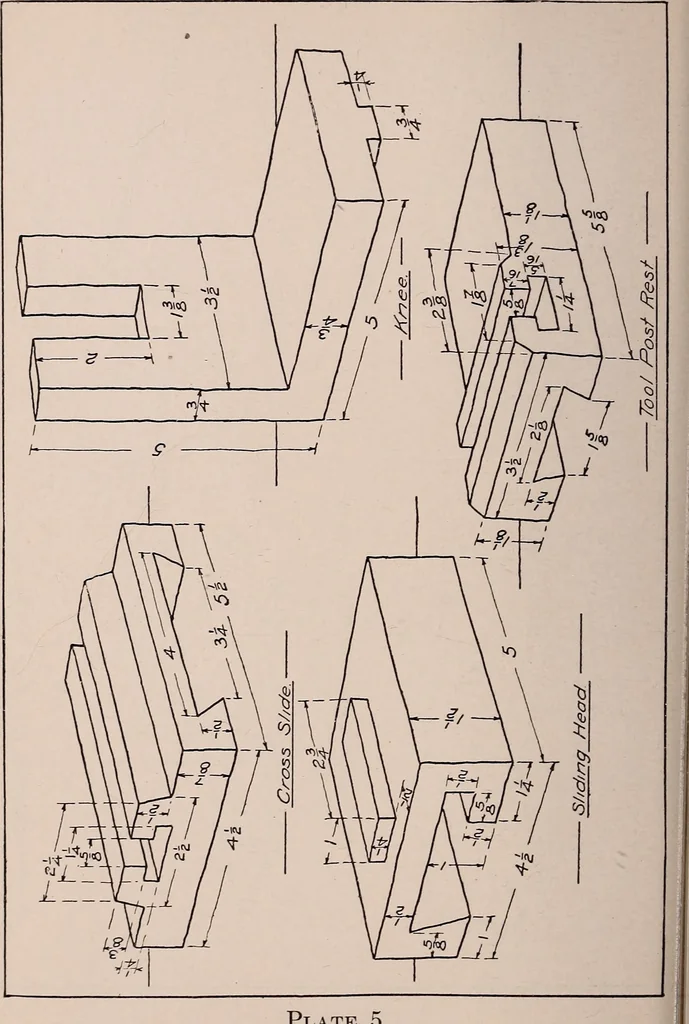

64 MECHANICAL DRAWING … Plate 5 PLATE 6 Make a tracing from Plate 5. When inking,follow the order for inking given on page 47, exceptthe directions for the witness and dimension lines.On the tracing make the lines included in Group 2black and very fine. This will require that theprimary and secondary lines be inked in…
Mechanical drawing
