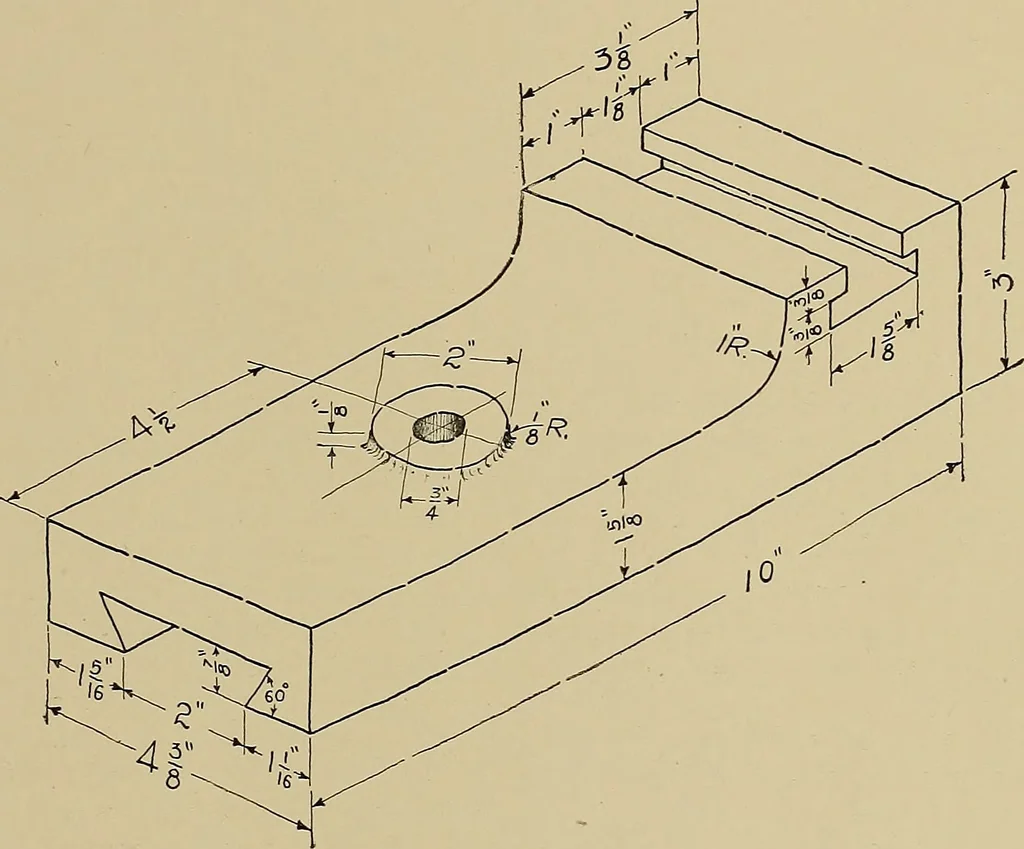

e end.There is little choice as to which view to make first; either viewwill do, though the top view cannot be finished until the dovetailis drawn in on the end view and then projected to the top view. It should be understood that the dovetail groove in the bottomof the tool rest runs through from… … CL^S3 Industrial name: John W. Roberts date Feb-IS-lS. Tool Rest DWG-Na. C-IOOS LESSON No. 14 UNFINISHED VIEWS.—In this lesson we continue our studyof the subject of projectiono We test the students knowledge ofthe subject by a method that differs in the mode of presentationfrom the two previous…
