Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 114

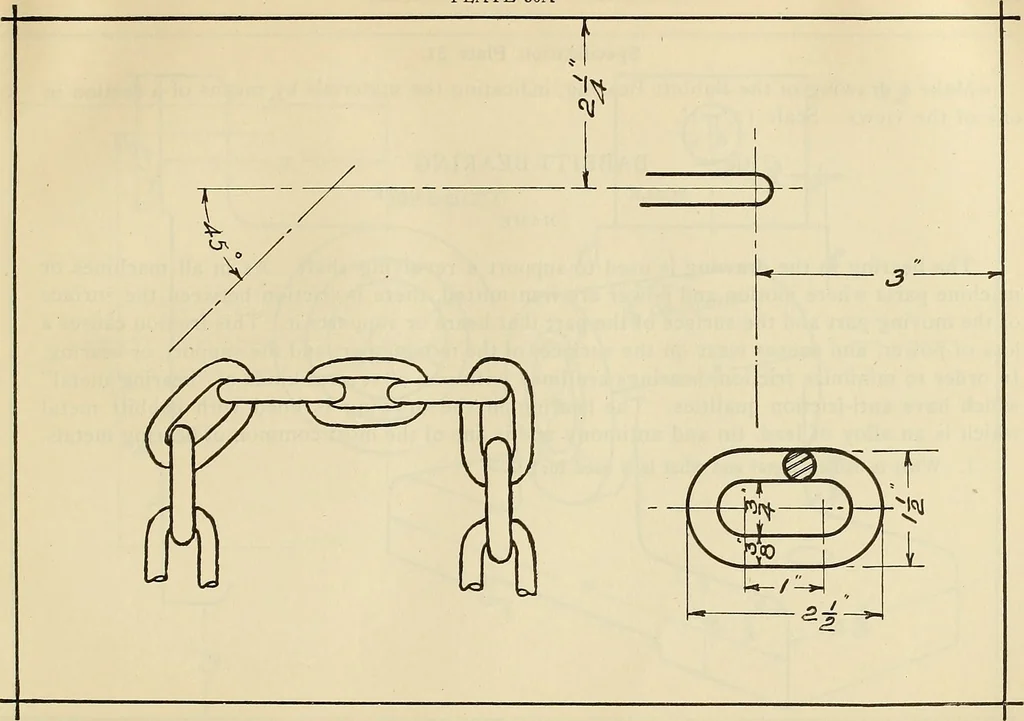

no MECHANICAL DRAWING PROBLEMS Specification Plate 30A.Make a drawing of the Chain as indicated. Scale i2=i. Title:— . CHAIN SCALE DATE NAME The area of a circle = radius x radius x 3.1416.The volume of a cylinder = area x length. 1. Compute the volume of a single link of the chain. PLATE 30A … 112 MECHANICAL DRAWING PROBLEM.S Specification Plate 31. Make a drawing of the Babbitt Bearing, indicating the materials by means of a section inone of the views. Scale i2=i. Title:— BABBITT BEARING SCALE DATE NAME The bearing in the drawing is used to support a revolving shaft. As in all machines…
Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
