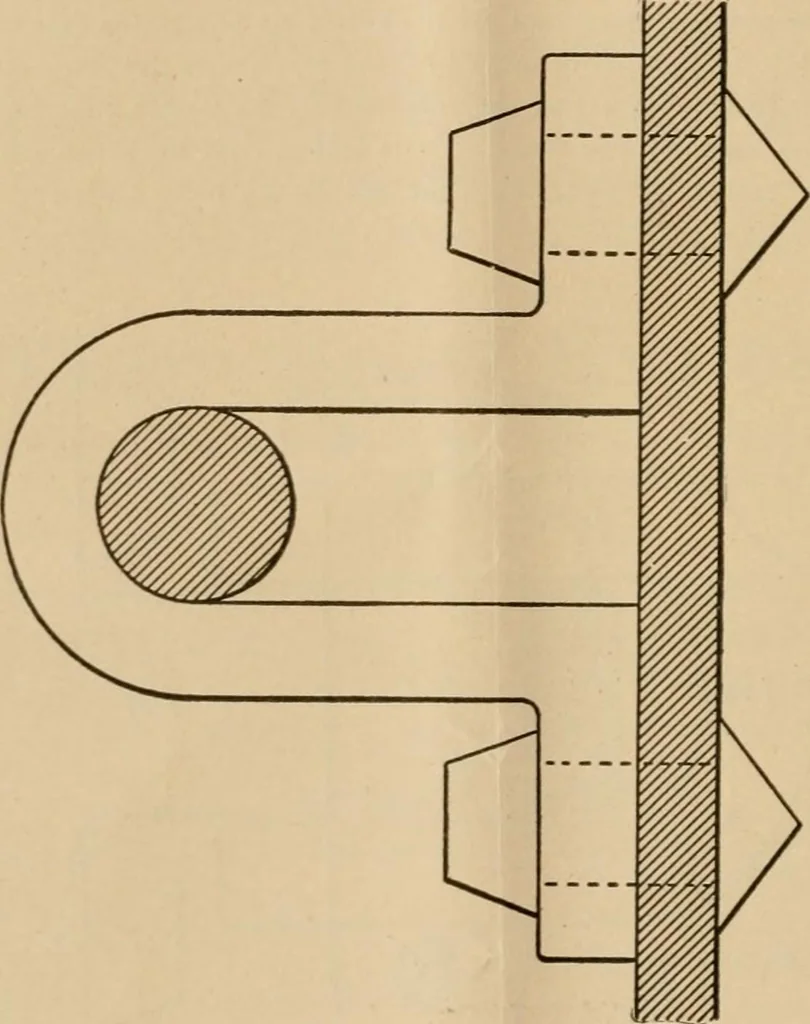

ched from apin which failed in this way, and which is now in the museum at the Home Office ofthe Hartford Steam Boiler Inspection and Insurance Company. We will consider these different modes of failure separately, beginning with thesimple shear of the pin, as this is the simplest to describe, and… … ± . Fig. 2.—Side View op the Lug Shown in Fig. 1. two sections that lie on either side of the lug, and between the lug and the jaws of thebrace. (These sections are indicated in Fig. 1 by the letters a and I.) Now if the pinand the brace be made of practically the same material, we might safely…
