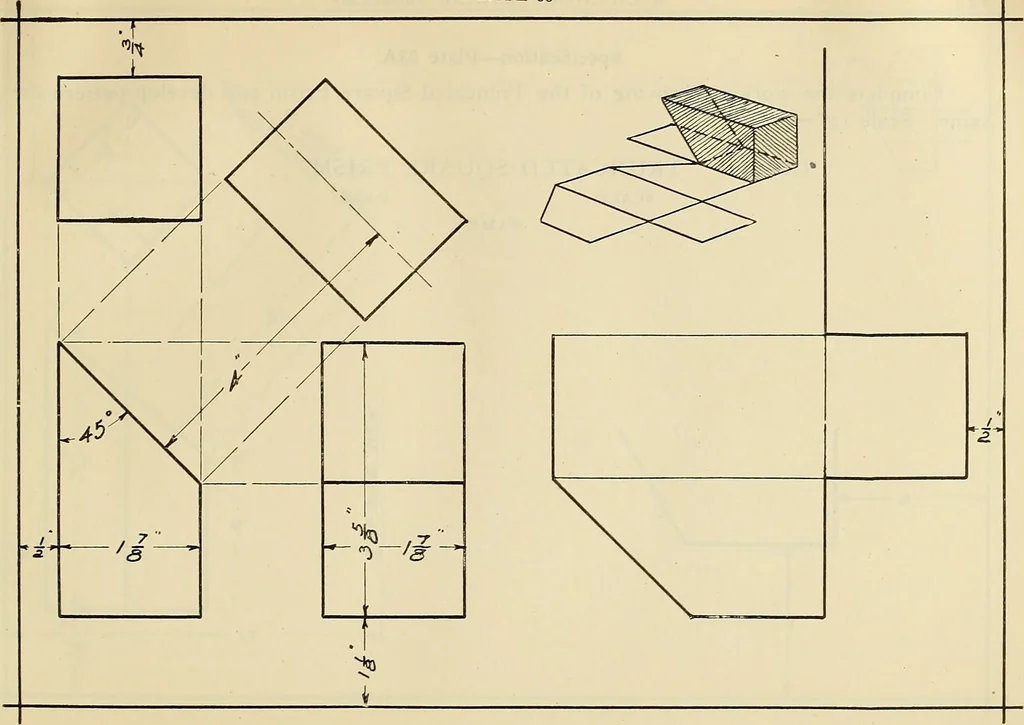

ng of the surfaces of an object arranged msuch a manner that a pattern being made from it and properly folded or rolled, would repro-duce the object. In order to do this, an outline of each surface must be obtained on a planeof projection parallel to it, so that it will be represented in its true… … 122 MECHANICAL DRAWING PROBLEMS Specification—Plate 33A. Complete the working drawing of the Truncated Square Prism and develop pattern forsame. Scale i2=i. Title:— TRUNCATED SQUARE PRISM SCALE DATE NAME PLATE 33A
