Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 137

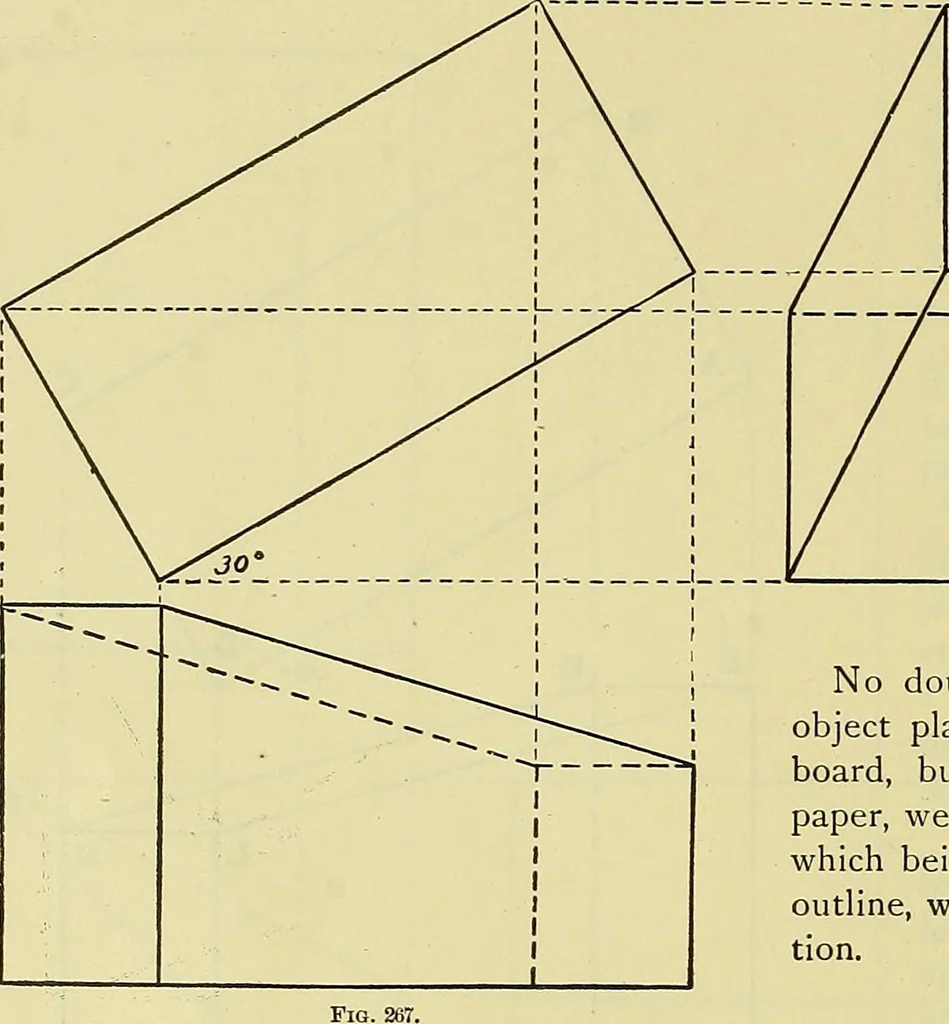

ide AF set off the distance FE equal to3; through the point E draw the horizontal lineEG cutting the line BH at G. On the line MC set off the distance MN equal to2 and through the point N draw the horizontalline NL, cutting the vertical line DK at L, join thepoints E and L, G and N. This completes… … In Fig. 267 is shown the frontview, top view and side view ofthe object just drawn. In this instance the object isplaced with its longer verticaledge nearer to the observer;otherwise the position of theobject is exactly the same asdescribed in the preceding exer-cise. _/ The side view is drawn in…
Mechanical drawing · Machine design
