Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 130

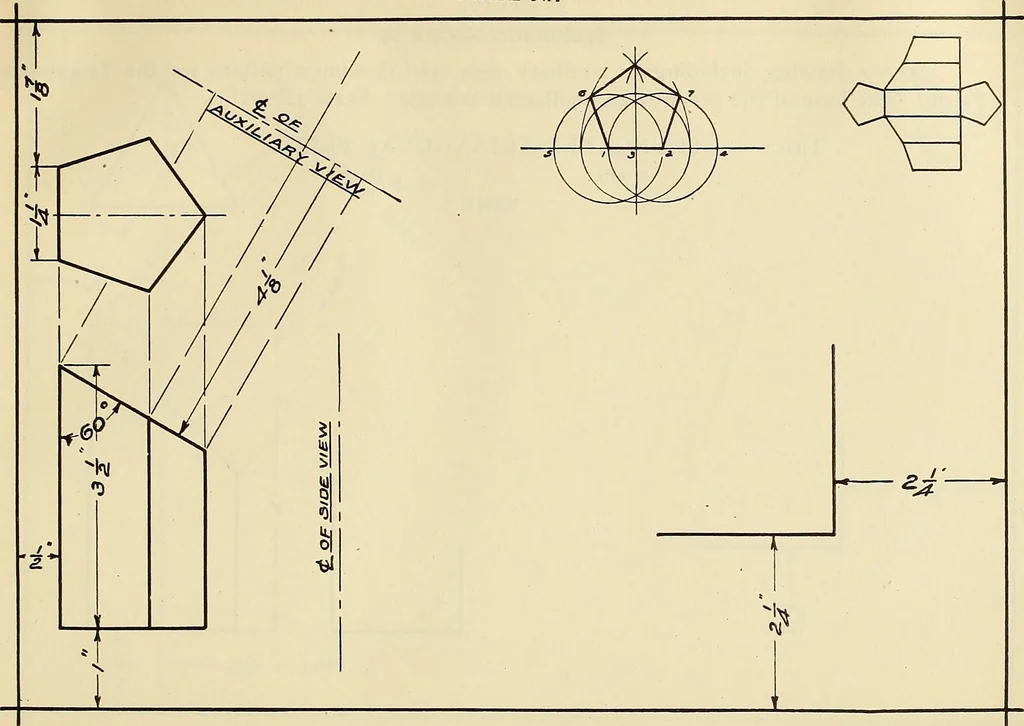

126 MECHAXICAL DRAWIXG PROBLEMS Specification—Plate 34A. Make a drawing, including an auxiliary view, and develop a pattern for the PentagonalPrism. A simple method of drawing a pentagon, having giving one side, is indicated. Scale I2=l. Title:— TRUNCATED PEXTAGOXAL PRISM SCALE DATE NAME PLATE 34A … 128 MECHAXICAI. DRAWING PROBLEMS Specification—Plate 35. Make a drawing, including- an auxiliary view, and develop a pattern for the TriangularPrism. The base of the prism is an equilateral triangle. Scale I2=i. Title:— TRUNCATED TRIANGULAR PRISAI SCALE DATE NAME PLATE 35
Mechanical drawing
