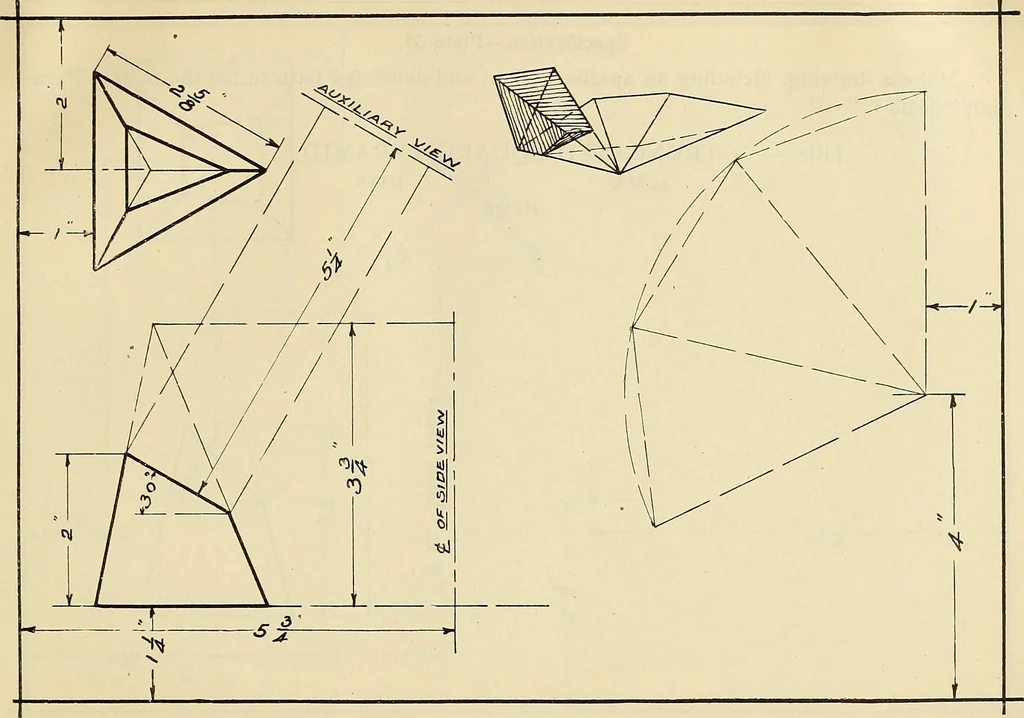

132 MECHANICAL DRAWING PROBLEMS Specification—Plate 36. r\Iake a drawing, including an auxiliary view, and develop a pattern for the TriangularPyramid. The base of the pyramid is an equilateral triangle. Scale I2=i. Title:— TRUNCATED TRIANGULAR PYRAMID SCALE ^ATE PLATE 36 … 134 MECHANICAL DRAWING PROBLEMS Specification—Plate 37. Alake a drawing, including an auxiliary view, and develop a pattern for the Square Pyra-mid. Scale i2=i. Title:— TRUNCATED SQUARE PYRAMID SCALE DATE NAME PLATE V
