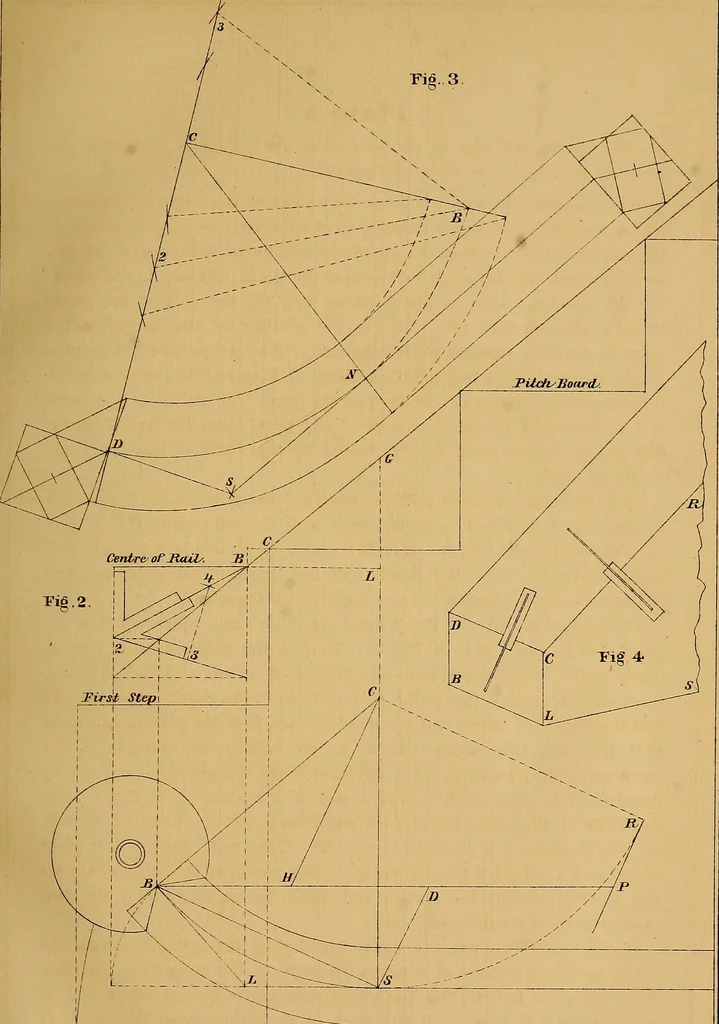

Figure 4 exhibits a practical method of finding the spring-bevels for thejoints, by fitting a piece of wood to the angle of the tangents on the plan.From the point L, draw the line L C at right angles to L S; draw 0 D atright angles to C L, and C R, the pitch of the stairs; apply the bevels atright… … Indies- 1 foot: Fig.l Plate 6 Exhibits the plan and elevation for the turnout at the starting of the staircase^the rail terminating against the newel; the flank sawed square to a parallelwidth. The length of the major axis is found by producing the curve D A, Fig.1, to T ; draw T J and A S parallel…
