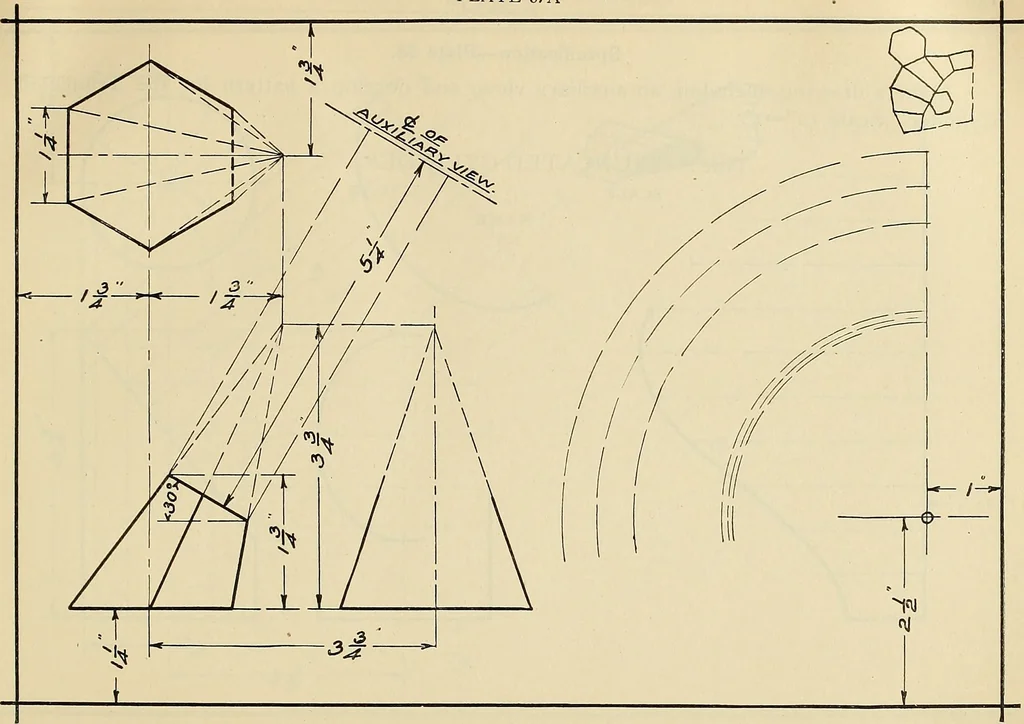

^ view, and develop a pattern for the Oblique Pyra-mid. In laying out the pattern draw an arc for each edge of the pyramid making the radiusequal the true length of the respecti\e edge. Scale I2=i. Title:— TRUNCATED OBLIQUE PYRA^IID SCALE DATE NAME PLATE 37A … 138 • MECHANICAL DRAWIXG PROBLEMS Specification—Plate 38. Make a drawing, including an auxiliary view, and develop a pattern for the TruncatedCylinder. Scale I2=i. Title:—TRUNCATED CYLINDER SCALE DATE NAME PLATE 38
