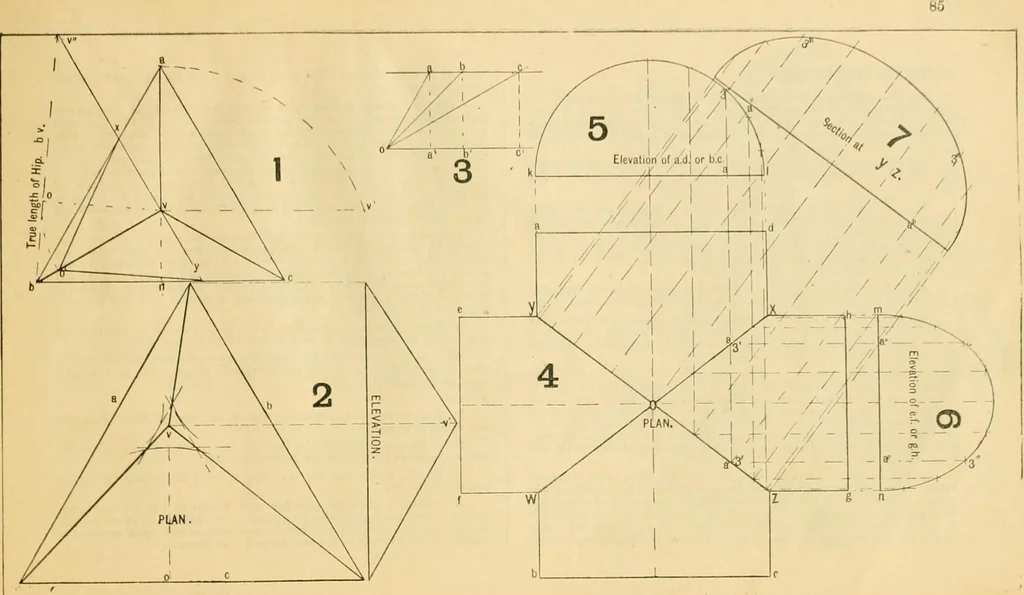

e to the plan of the valley you select,and determine the true length of the intersection, then a line perpendicularto the intersection will show the height of the triangle, turn this into theplan upon the line of intersection, and join to the two points where the lineat right-angles cuts the sides… … BEVELS FOR OBLIQUE WORK. Having in previous chapters explained the projections of a straight linewhen inclined to both planes o! projection, likewise some of the ordinarysolids, those who have mastered the foregoing will find no difficulty in apply-ing these principles to practice, in the…
