Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 164

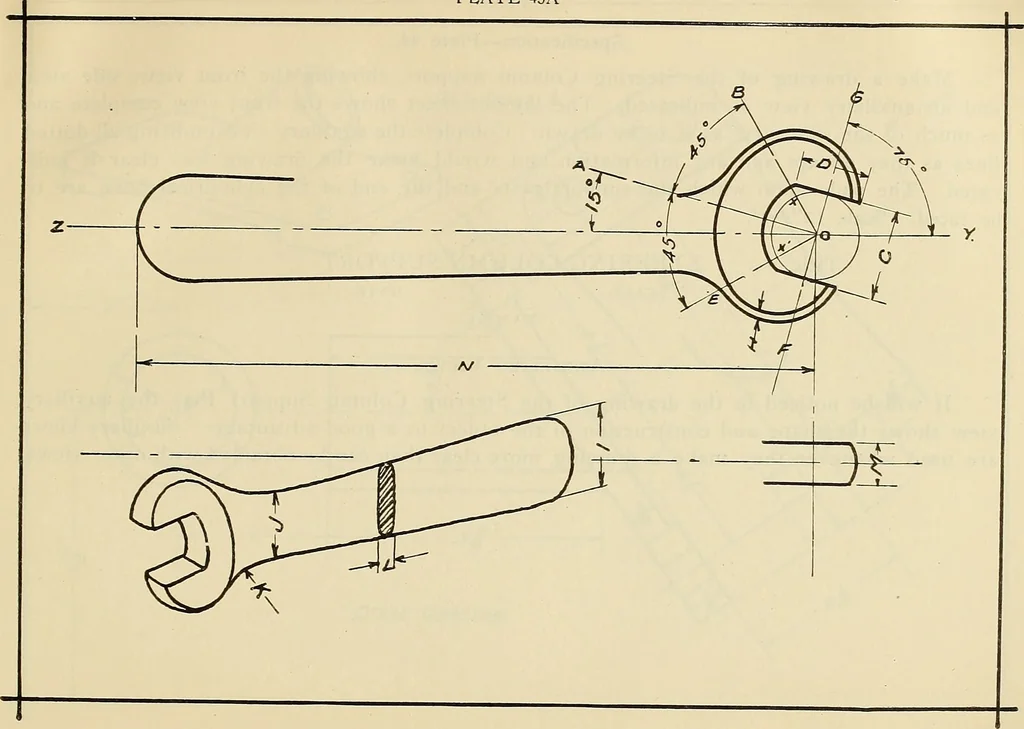

— >2 , A — 9 . Draw line O.K 15° to center line ZY. Draw OB and OE 45° to OA, and FG 75° toZY as shown. Tangent to circle of C diameter draw jaw faces parallel to OA. Spacehalf of D on each side of 75° line FG. With x and x as centers, draw arcs from outerend of jaw faces to lines OB and OE.… … l62 MECHANICAL DRAWIXG PROBLEMS Specification—Plate 44. iNIake a drawing of the Steering Column Support, showing the front view, side view^nd an auxiliary view as indicated. The lay-out sheet shows the front view complete andas much of the side view as is to be drawn. Complete the auxiliary view…
