Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 174

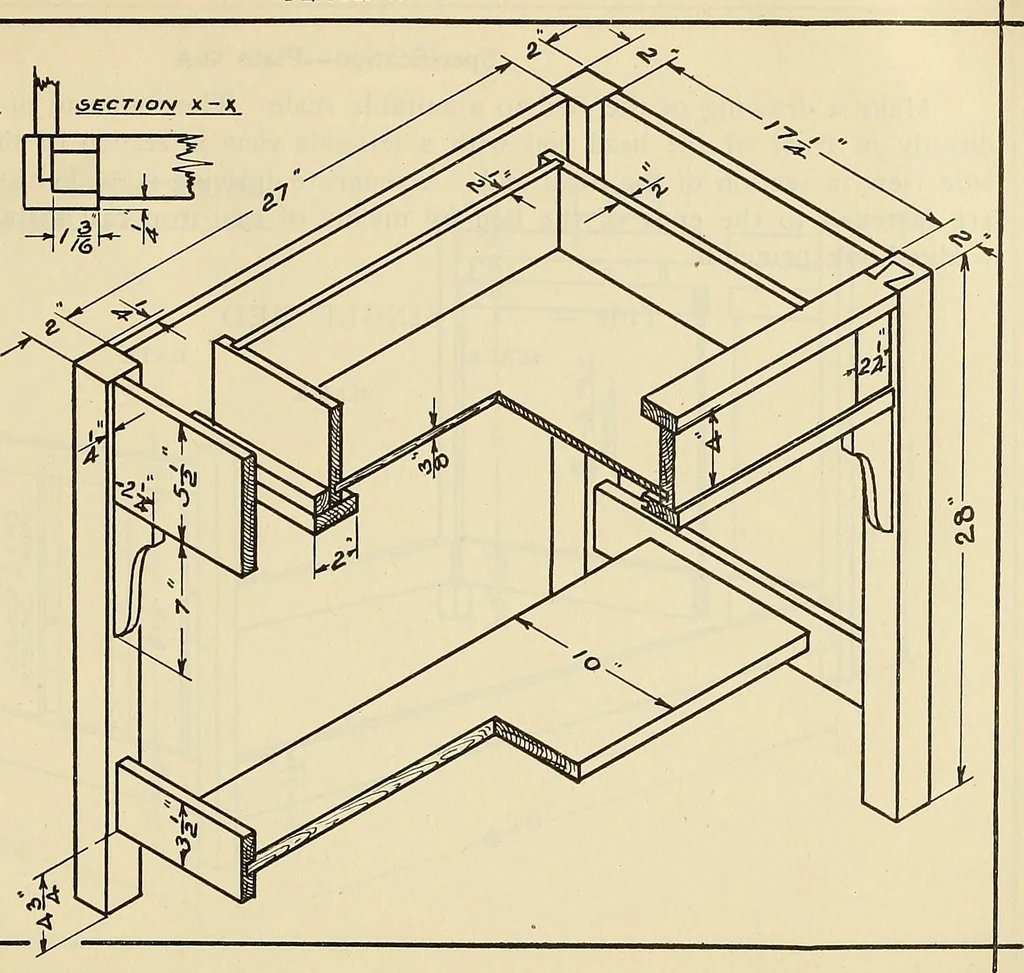

, showing the end view in section and the front-view half in section. Show also, sections on lines V-V, O-O, and X-X. Size of top 24 x 36.Depth of drawer 19 over all. All material ^ unless otherwise specified. Scale iV = i Title:— LIBRARY TABLE SCALE DATE NAME 1. Make out a bill of material for the… … ^ •^ SE.cr/OA/ o-o ±3- T. (,.■■ 0 / 1-2 MECHANICAL DRAWING PROBLEMS Specification—Plate 46A Make a drawing of the Bed to a suitable scale. The foot end of the bed may be drawndirectly in front of the head end with a left-side view in section of the foot end and a right-side view in section of the…
