Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 176

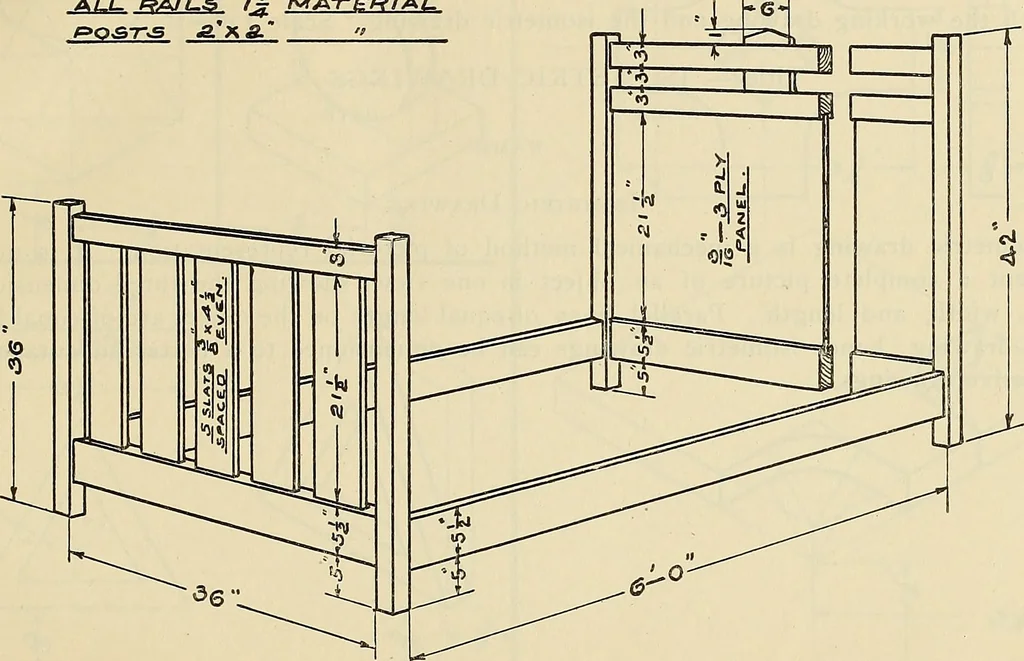

/ 1-2 MECHANICAL DRAWING PROBLEMS Specification—Plate 46A Make a drawing of the Bed to a suitable scale. The foot end of the bed may be drawndirectly in front of the head end with a left-side view in section of the foot end and a right-side view in section of the head end. A separate drawing is… … 174 MECHANICAL DRAWIXG PROBLEMS Specification—Plate 47. Make isometric drawings of a i}i cube; a circular block 1% thick by i>2 diameterresting on a block iV thick by i3^ square; a triangular frame and a clutch spider asindicated. In the drawing of the frame and the clutch spider, dimensions are…
Mechanical drawing
