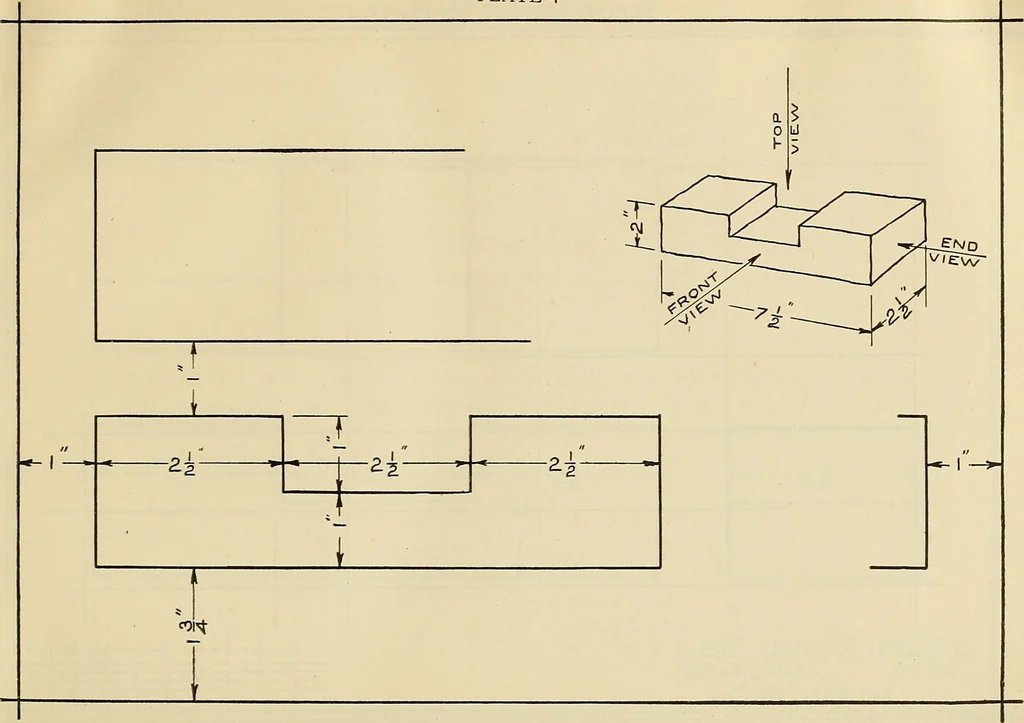

ct is viewed squarely from the side, and is placed directly opposite and in line with thefront view. When the object is viewed from the right side, the side view is placed to the rightof the front view; when it is viewed from the left side, the side view is placed to the left of thefront view. 1.… … n- PENCIL LAY-OUT OF PLATE 4 tr PLATE 4 (Completed) -. ^ a. ai I <M 2-k LAP JOINT PIEICE 6CAL.^|g=l DA-TE Note. It will be noticed that all dimensions are placed so as to read from the bottom edge or the right-hand edge of the sheet. This rule must always be adhered to. 30 MECHANICAL DRAWING…
