Jamison, Alpha Pierce. [from old catalog] · New York, J. Wiley & sons; · leaf 35

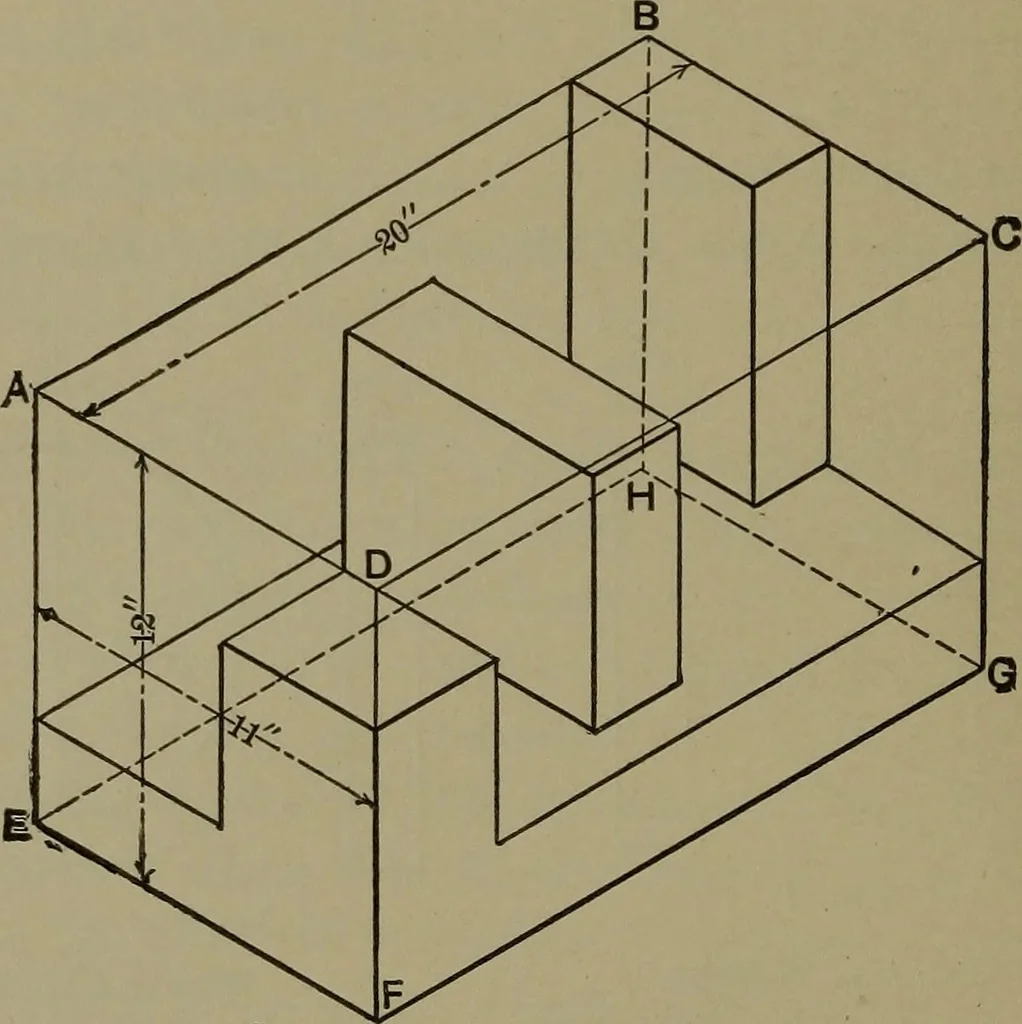

case, however, it is well tochoose such a scale as will make the drawing as large as possible.The usual scales are full size, three-fourths size, one-half size, andone-quarter size for comparatively small objects, and for thoseof large dimensions one-eighth size, one-twelfth size, one-six-teenth… … THE. OBJECT TO BE PRAWN^Fig. 11 dimensions of the object to be drawn, (2) the dimensions of thesheet of paper on which the drawing is to be made, and (3) thenumber of views to be drawn. With these known we have thefull size of the drawing known, not only of any one view alone,but of the several…
Mechanical drawing
