Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 88

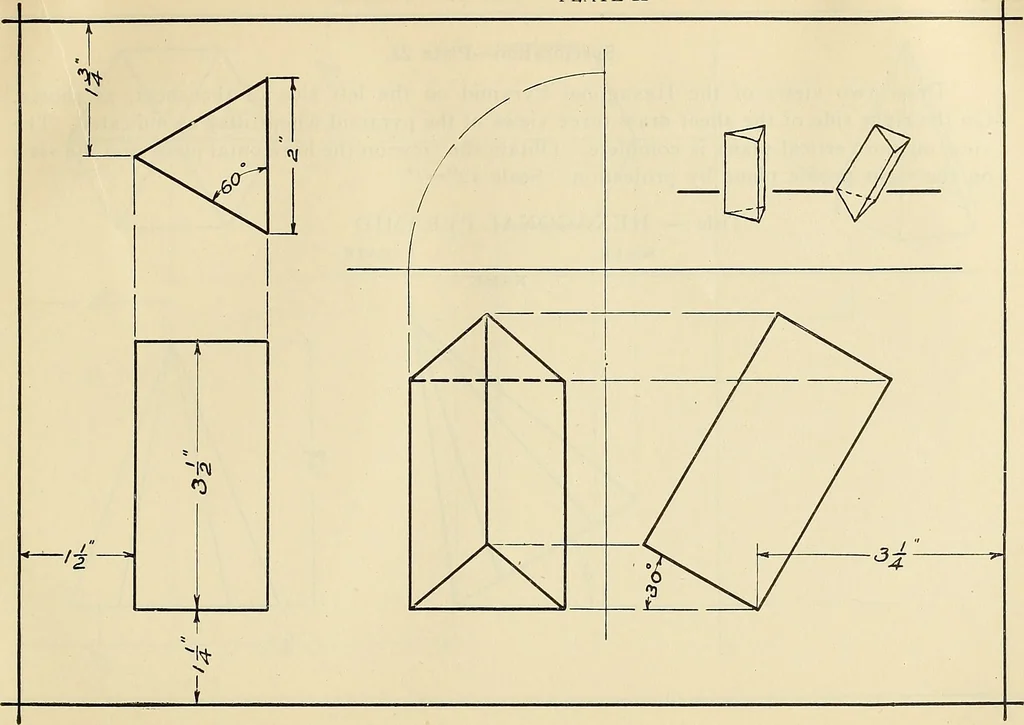

84 MECHANICAL DRAWING PROBLEMS Specification—Plate 22. Draw two views of the Triangular Prism on the left side of the sheet, as shown. Onthe right side of the sheet draw three views of the prism when tilted as indicated. The viewon the vertical plane and the view^ on the left profile plane are… … 86 MECHANICAL DRAWING PROBLEMS Specification—Plate 23. Draw two views of the Hexagonal Pyramid on the left side of the sheet, as shown.On the right side of the sheet draw three views of the pyramid when tilted as indicated. Theview on the vertical plane is complete. Obtain the view on the…
Mechanical drawing
