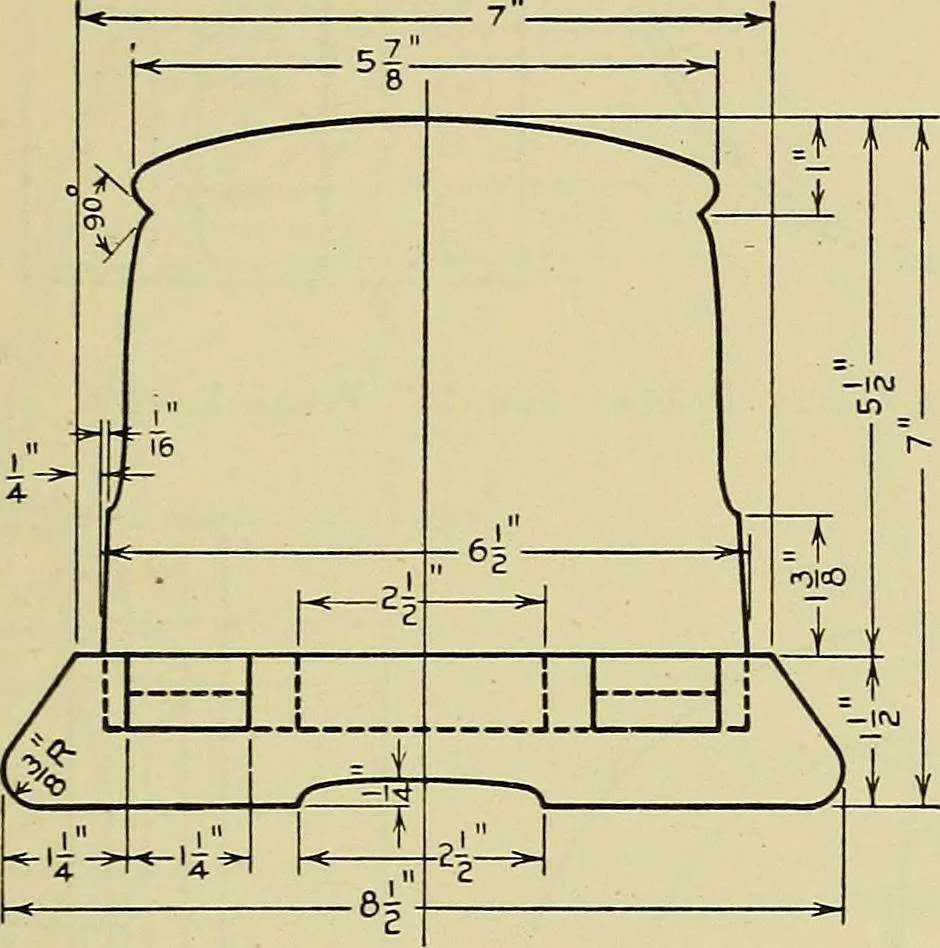

TRACING AND BLUEPRINTING 181 DATA FOR DRAWING PLATE 22 Given: Orthographic drawings, Figs. 190,191,192, and 193. Required: To draw the views of the object shown in Fig.190, 191, 192, or 193, as assigned by the instructor, from thefollowing statements. Any similar problem may be substitutedby the… … u Fig. 190. Book Back Given: Fig. 190. The front and right side views.Required: To draw the front and left side views. Given: Fig. 191. The front and left side views.Required: To draw the front half section and right sideviews. Given: Fig. 192. The front and left side views.Required: To draw the…
Mechanical drawing
