Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 187

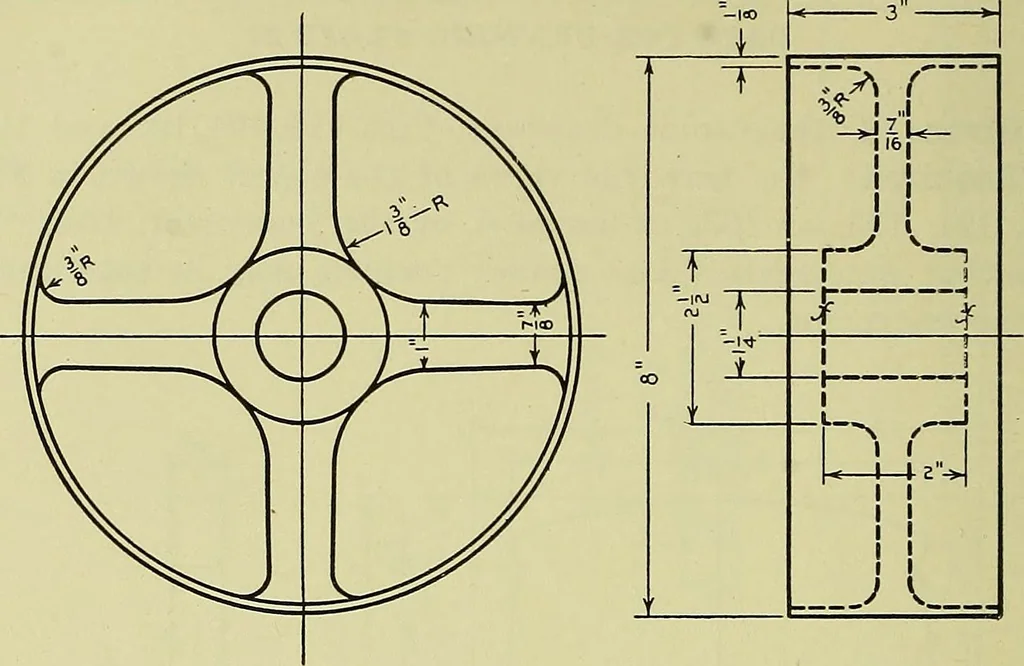

u Fig. 190. Book Back Given: Fig. 190. The front and right side views.Required: To draw the front and left side views. Given: Fig. 191. The front and left side views.Required: To draw the front half section and right sideviews. Given: Fig. 192. The front and left side views.Required: To draw the… … Fig. 191. Counter Shaft Pulley for 12 Wood Lathe
Mechanical drawing
